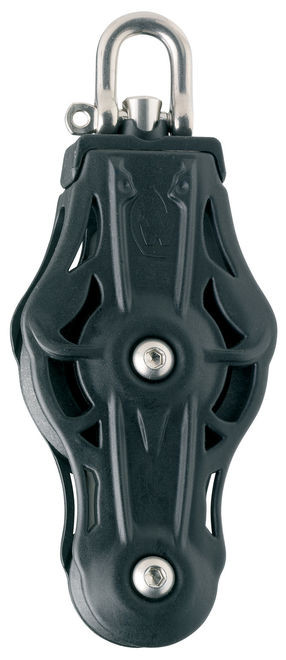

Wichard Plain Bearing Block Fiddle w/ Swivel Head
Wichard
$61.41 - $118.15
(No reviews yet)
Write a Review
Wichard
Wichard Plain Bearing Block Fiddle w/ Swivel Head
WICHARD FIDDLE PLAIN BEARING BLOCKS - SWIVEL HEAD
- Complete range of plain bearing blocks
- Modern design
- Withstand high loads
- Ideal for static operations
- The sheave runs on the stainless steel bush
- Light cheeks protecting the sheave
- Wide choice of fastenings thanks to the universal head
- The sheave can be removed for maintenance
APPLICATIONS
- Mainsheet systems
- Halyard applications
- Boom vangs
- Spinnaker control lines on dinghies, catamaran and small keelboats
MATERIALS
- Grade 316L stainless steel head configuration
- Grade 316L stainless steel load straps
- POM cheeks
- Composite saddle for cam models
- Composite sheave
- Terminal (shackle i.e.): 316L stainless steel grade
SPECIFICATIONS
Part no. 62405: Fiddle plain bearing block - sheave 35 - Swivel head
- Rope size: 8
- Length (mm): 107
- Width (mm): 37
- Thickness (mm): 23
- Sheave diameter (mm): 35
- Shackle diameter (mm): 5
- Working load (kg): 320
- Breaking load (kg): 900
- Weight (g): 86
Part no. 63405: Fiddle plain bearing block - sheave 45 - Swivel head
- Rope size: 10
- Length (mm): 130
- Width (mm): 49
- Thickness (mm): 26
- Sheave diameter (mm): 45
- Shackle diameter (mm): 5
- Working load (kg): 560
- Breaking load (kg): 1000
- Weight (g): 147
Part no. 64405: Fiddle plain bearing block - Sheave 55 - Swivel head
- Rope size: 12
- Length (mm): 160
- Width (mm): 63
- Thickness (mm): 29
- Sheave diameter (mm): 55
- Shackle diameter (mm); 6
- Working load (kg): 800
- Breaking load (kg): 1500
- Weight (g): 247
Part no. 65405: Fiddle plain bearing block - Sheave 70 - Swivel head
- Rope size: 14
- Length (mm): 204
- Width (mm): 80
- Thickness (mm): 39
- Sheave diameter (mm): 70
- Shackle diameter (mm): 8
- Working load (kg): 1440
- Breaking load (kg): 2700
- Weight (g): 518
