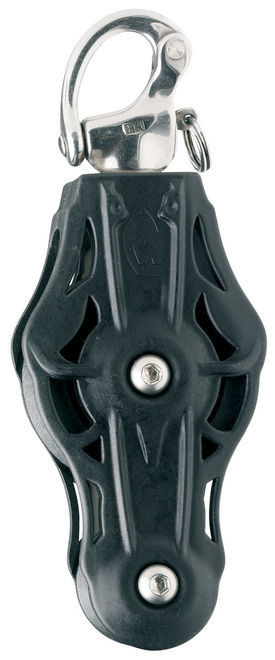

Wichard Plain Bearing Block Fiddle w/ Swivel Snap Shackle (63435-65345)

Wichard Plain Bearing Block Fiddle w/ Swivel Snap Shackle

Wichard
SKU:
63435-65345
|
UPC:
3587790634358
$117.30 - $191.25
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

WICHARD FIDDLE PLAIN BEARING BLOCKS - SWIVEL SNAP SHACKLE

  • Complete range of plain bearing blocks
  • Modern design
  • Withstand high loads
  • Ideal for static operations
  • The sheave runs on the stainless steel bush
  • Light cheeks protecting the sheave
  • Wide choice of fastenings thanks to the universal head

APPLICATIONS

  • Mainsheet systems
  • Halyard applications
  • Boom vangs
  • Downhaul
  • Mast head block
MATERIALS
  • Grade 316L stainless steel head configuration
  • Grade 316L stainless steel load straps
  • POM cheeks
  • Composite saddle for cam models
  • Composite sheave
  • Terminal (shackle i.e.): 316L stainless steel grade

SPECIFICATIONS

Part no. 63435: Fiddle plain bearing block - sheave 45 - Swivel snap shackle

  • Rope size: 10
  • Length (mm):143
  • Width (mm): 49
  • Thickness (mm): 26
  • Sheave diameter (mm): 45
  • Working load (kg): 560
  • Breaking load (kg): 1000
  • Weight (g): 171

Part no. 64435: Fiddle plain bearing block - Sheave 55 - Swivel snap shackle

  • Rope size: 12
  • Length (mm): 167
  • Width (mm): 63
  • Thickness (mm): 29
  • Sheave diameter (mm): 55
  • Working load (kg): 800
  • Breaking load (kg): 1500
  • Weight (g): 253

Part no. 65435: Fiddle plain bearing block - Sheave 70 - Swivel snap shackle

  • Rope size: 14
  • Length (mm): 213
  • Width (mm): 80
  • Thickness (mm): 39
  • Sheave diameter (mm): 70
  • Working load (kg): 1440
  • Breaking load (kg): 2700
  • Weight (g): 570
