Wichard Ball Bearing Block Fiddle w/ Swivel Head

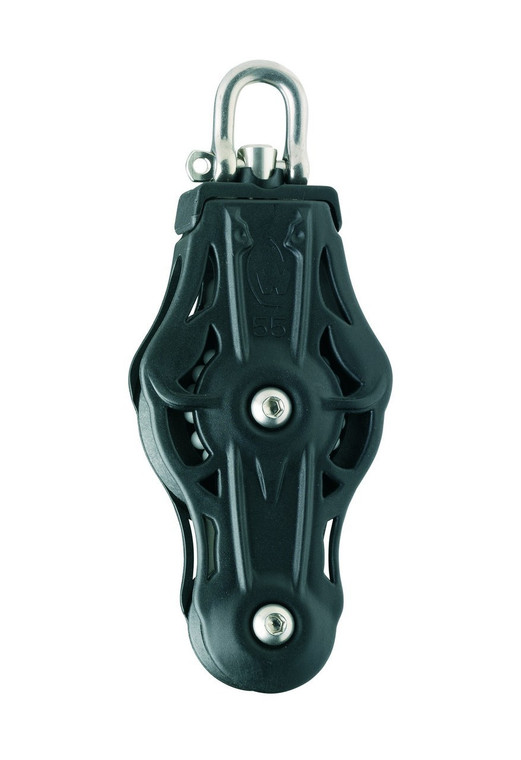

WICHARD FIDDLE BALL BEARING BLOCK - SWIVEL HEAD
- Complete range of ball bearing blocks
- Modern design
- Innovative design with two lateral races of ball bearings
- Smooth running for low load and high speed action
- Under high load the hub runs on stainless steel bush which allows the sheave to run freely
- Light cheeks protecting the sheave
- Wide choice of fastenings thanks to the universal head
APPLICATIONS
- Mainsail systems and travelers
- Spinnaker sheets
- Genoa sheets
- Running backstays
MATERIALS
- Grade 316L stainless steel head configuration
- Grade 316L stainless steel load straps
- POM cheeks
- Delrin® ball bearings
- Composite saddle for cam models
- Composite sheave
- Terminal (shackle i.e.): 316L stainless steel grade
SPECIFICATIONS
Part no. 72405: Fiddle ball bearing block - sheave 35 - Swivel head
- Rope size: 8
- Length (mm): 107
- Width (mm): 37
- Thickness (mm): 23
- Sheave diameter (mm): 35
- Shackle diameter (mm): 5
- Working load (kg): 320
- Breaking load (kg): 900
- Weight (g): 86
Part no. 73405: Fiddle ball bearing block - sheave 45 - Swivel head
- Rope size: 10
- Length (mm): 130
- Width (mm): 49
- Thickness (mm): 26
- Sheave diameter (mm): 45
- Shackle diameter (mm): 5
- Working load (kg): 560
- Breaking load (kg): 1000
- Weight (g): 147
Part no. 74405: Fiddle ball bearing block - Sheave 55 - Swivel head
- Rope size: 12
- Length (mm): 160
- Width (mm): 63
- Thickness (mm): 29
- Sheave diameter (mm): 55
- Shackle diameter (mm): 6
- Working load (kg): 800
- Breaking load (kg): 1500
- Weight (g): 247
Part no. 75405: Fiddle ball bearing block - Sheave 70 - Swivel head
- Rope size: 14
- Length (mm): 204
- Width (mm): 80
- Thickness (mm): 39
- Sheave diameter (mm): 70
- Shackle diameter (mm): 8
- Working load (kg): 1440
- Breaking load (kg): 2700
- Weight (g): 518
