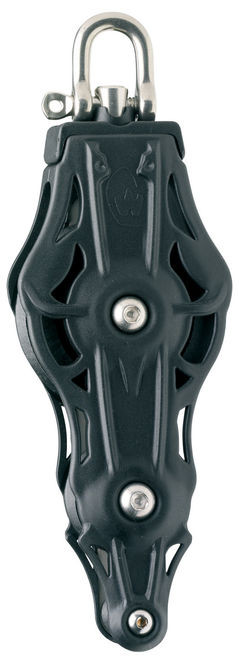

Wichard 45mm Plain Bearing Blocks Fiddle w/ Swivel Head & Becket (63406/64406/65406)

Wichard 45mm Plain Bearing Blocks Fiddle w/ Swivel Head & Becket

Wichard
SKU:
63406
|
UPC:
3587790634068
$72.93
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Wichard 45mm Plain Bearing Blocks Fiddle w/ Swivel Head & Becket

Features

  • Complete range of plain bearing blocks
  • Modern design
  • Withstand high loads
  • Ideal for static operations
  • The sheave runs on the stainless steel bush
  • Light cheeks protecting the sheave
  • Wide choice of fastenings thanks to the universal head

Applications

  • Mainsheet systems
  • Halyard applications
  • boom vangs
  • Downhaul
  • Mast head block

Materials

  • Grade 316L stainless steel head configuration
  • Grade 316L stainless steel load straps
  • POM cheeks
  • Composite saddle for cam models
  • Composite sheave
  • Terminal (shackle i.e): 316L stainless steel grade

Specifications

Part no. 63406: Fiddle plain bearing block - Sheave 45 - Swivel head & becket

  • Rope size: Pour cordage de 12 m
  • Length (mm): 186
  • Width (mm): 63
  • Thickness (mm): 29
  • Sheave diameter (mm): 55
  • Schackle diameter (mm): 6
  • Working load (kg): 800
  • Breaking load (kg): 1500
  • Weight (g): 270

Part no. 64406: Fiddle plain bearing block - Sheave 55 - Swivel head & becket

  • Rope size: Pour cordage de 12 m
  • Length (mm): 186
  • Width (mm): 63
  • Thickness (mm): 29
  • Sheave diameter (mm): 55
  • Schackle diameter (mm): 6
  • Working load (kg): 800
  • Breaking load (kg): 1500
  • Weight (g): 270

Part no. 65406: Fiddle plain bearing block - Sheave 70 - Swivel head & becket

  • Rope size: Pour cordage de 14 m
  • Length (mm): 236
  • Width (mm): 80
  • Thickness (mm): 39
  • Sheave diameter (mm): 70
  • Schackle diameter (mm): 8
  • Working load (kg): 1440
  • Breaking load (kg): 2700
  • Weight (g): 570
