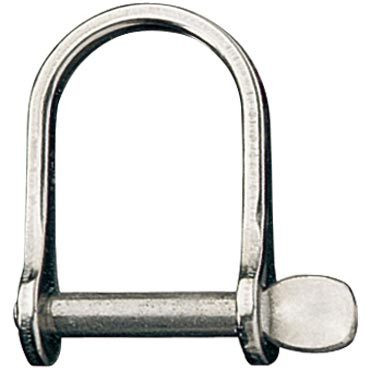

Ronstan Wide Dee Shackle (RF1852, RF1853) *Indicative product image. Actual product may differ slightly from that shown.

Ronstan Wide Dee Shackles (RF1852/RF1853)

Ronstan
SKU:
RF1852/RF1853
|
UPC:
9316800103553
$7.07 - $109.08
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF1852: Wide D Shackle, 3/16" Pin

SPECIFICATIONS

    • 3/16" pin dia., coined pin head.
    • Weight (g) 15
    • P.L. B.L. (kg) 700
    • U.D.L. B.L. (kg) 1200
    • A (mm) 4.8
    • B (mm) 29.0
    • C (mm) 20.0

RF1853: Wide D Shackle, 1/4" Pin

SPECIFICATIONS

    • 1/4" pin dia., coined pin head.
    • Weight (g) 26
    • P.L. B.L. (kg) 1100
    • U.D.L. B.L. (kg) 2300
    • A (mm) 6.4
    • B (mm) 39.0
    • C (mm) 31.0

Notes:

  • UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
  • PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.

FEATURES

  • High strength to weight ratio

MATERIALS

  • Grade 316 stainless steel bodies and pins
