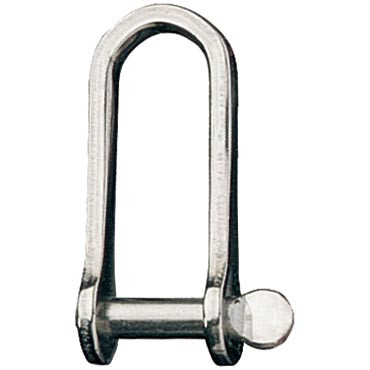

Ronstan Long Dee Shackles (RF621 to RF626)
Ronstan
$25.25 - $111.10
(No reviews yet)
Write a Review
Ronstan
Ronstan Long Dee Shackles (RF621 to RF626)
| LONG DEE SHACKLES | ||||||||
| Product No. | Description | A (mm) | B (mm) | C (mm) | PL/BL (kg) | UDL/BL (kg) | Shackle Pin | Weight (g) |
| RF621 | Stainless Steel Long D Shackle, 4mm (5/23") Pin, Coined Head | 4.0 | 26 | 10 | 600 | 800 | 10 | |
| RF622 | Stainless Steel Long D Shackle, 3/16" Pin, Coined Head | 4.8 | 31 | 11 | 800 | 1200 | RF32 | 15 |
| RF623 | Stainless Steel Long D Shacke, 1/4" Pin, Coined Head | 6.4 | 44 | 15 | 1400 | 2300 | RF33 | 30 |
| RF624 | Stainless Steel Long D Shackle, 5/16" Pin, Coined Head with Hole | 7.9 | 55 | 17 | 2700 | 3600 | RF34 | 60 |
| RF625 | Stainless Steel Long D Shackle, 3/8" Pin, Coined Head with Hole | 9.5 | 60 | 17 | 3600 | 5400 | RF35 | 90 |
| RF626 | Stainless Steel Long D Shackle, 1/2" Pin, Coined Head with Hole | 12.7 | 72 | 18 | 7500 | 7700 | RF36 | 155 |
For RF624, RF625, RF626: Shackle pins drilled for seizing wire.
FEATURES
- High strength to weight ratio
- Premium quality, rated
APPLICATIONS
- Mainsheet on powerful dinghies and skiffs.
- Series 6 mainsheet systems on sportsboats using RF7 mainsheet swivel units.
- Control line applications on larger yachts.
- Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks)
MATERIALS
- Grade 316 stainless steel bodies and pins
NOTES
- UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
- PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
