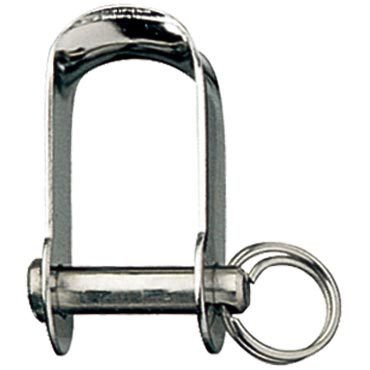

Ronstan Lightweight Clevis Pin Dee Shackle Part Numbers RF801-RF807 *Indicative product image. Actual product may differ slightly from that shown.

Ronstan Lightweight Clevis Pin Dee Shackles

Ronstan
SKU:
RF801-RF807
|
UPC:
9316800303984
$79.95 - $145.17
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF801: Shackle 4mm Flat

SPECIFICATIONS

    • Weight (g) 3
    • P.L. B.L. (kg) 320
    • U.D.L. B.L. (kg) 480
    • A (mm) 4.8
    • B (mm) 7.4
    • C (mm) 7.0

RF803: Shackle 6mm Flat

SPECIFICATIONS

    • Weight (g) 10
    • P.L. B.L. (kg) 600
    • U.D.L. B.L. (kg) 900
    • A (mm) 5.9
    • B (mm) 12.2
    • C (mm) 11.3

RF805: Shackle 8mm Flat

SPECIFICATIONS

    • Weight (g) 25
    • P.L. B.L. (kg) 1200
    • U.D.L. B.L. (kg) 1800
    • A (mm) 7.9
    • B (mm) 16.7
    • C (mm) 17.6

RF806S: Wide Shackle, 3/16" Slotted Pin

SPECIFICATIONS

    • Weight (g) 10
    • P.L. B.L. (kg) 700
    • U.D.L. B.L. (kg) 950
    • A (mm) 4.8
    • B (mm) 11.5
    • C (mm) 16.0
    • 3/16" pin dia.

RF807: Lightweight Shackle, 3/16" Clevis Pin

SPECIFICATIONS

    • Weight (g) 10
    • P.L. B.L. (kg) -
    • U.D.L. B.L. (kg) 700
    • A (mm) 4.8
    • B (mm) 20.0
    • C (mm) 14.0

Notes:

  • UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
  • PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.

MATERIALS

  • Grade 316 stainless steel bodies and pins
