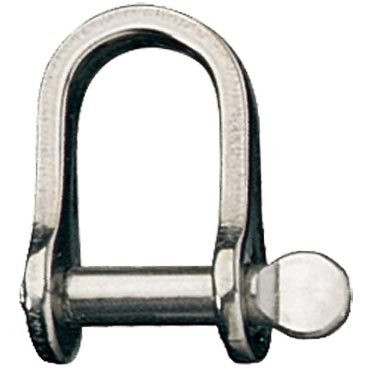

Ronstan Standard Dee Shackle, Coined Pin Head Part Numbers RF616, RF617 *Indicative product image. Actual product may differ slightly from that shown.

Ronstan Standard Dee Shackles, Coined Pin Head

Ronstan
SKU:
RF616-R620
|
UPC:
9316800455959
$6.06 - $181.80
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF616: Stainless Steel D Shackle, 3/16" Pin, Slotted Head

SPECIFICATIONS

    • Weight (g) 15
    • P.L. B.L. (kg) 800
    • U.D.L. B.L. (kg) 1200
    • Shackle Pin Product No. RF33
    • A (mm) 4.7
    • B (mm) 18.0
    • C (mm) 11.0

RF617: Stainless Steel D Shackle, 1/4" Pin, Coined Head

SPECIFICATIONS

    • Weight (g) 25
    • P.L. B.L. (kg) 1400
    • U.D.L. B.L. (kg) 2300
    • Shackle Pin Product No. RF33
    • A (mm) 6.4
    • B (mm) 22.0
    • C (mm) 14.0

RF617A: Stainless Steel D Shackle, 1/4" Pin, Coined Head

SPECIFICATIONS

    • Weight (g) 25
    • Pin Ø (mm) 6.4
    • P.L. B.L. (kg) 1400
    • U.D.L. B.L. (kg) 2300
    • A (mm) 6.4
    • B (mm) 25
    • C (mm) 13

RF618: Stainless Steel D Shackle, 5/16" Pin, Coined Head with Hole

SPECIFICATIONS

    • Weight (g) 50
    • P.L. B.L. (kg) 2700
    • U.D.L. B.L. (kg) 3600
    • Shackle Pin Product No. RF34
    • A (mm) 7.9
    • B (mm) 29.0
    • C (mm) 16.0

RF618A: Stainless Steel D Shackle, 5/16" Pin, Coined Head with Hole

SPECIFICATIONS

    • Weight (g) 50
    • Pin Ø (mm) 7.9
    • P.L. B.L. (kg) 2700
    • U.D.L. B.L. (kg) 3600
    • A (mm) 7.9
    • B (mm) 32
    • C (mm) 16

RF619: Stainless Steel D Shackle, 3/8" Pin, Coined Head with Hole

SPECIFICATIONS

    • Weight (g) 80
    • P.L. B.L. (kg) 3600
    • U.D.L. B.L. (kg) 5400
    • Shackle Pin Product No. RF35
    • A (mm) 9.5
    • B (mm) 38.0
    • C (mm) 17.0

RF620: Stainless Steel D Shackle, 1/2" Pin, Coined Head with Hole

SPECIFICATIONS

    • Weight (g) 130
    • P.L. B.L. (kg) 7500
    • U.D.L. B.L. (kg) 7700
    • Shackle Pin Product No. RF36
    • A (mm) 12.7
    • B (mm) 42.0
    • C (mm) 19.0

Notes:

  • UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
  • PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. Shackle pins drilled for seizing wire.

FEATURES

  • High strength to weight ratio.
  • Premium quality, rated

APPLICATIONS

  • Many shapes and sizes to suit any application
  • (With Hole) Shackle pins drilled for seizing wire.

MATERIALS

  • Grade 316 stainless steel bodies and pins
