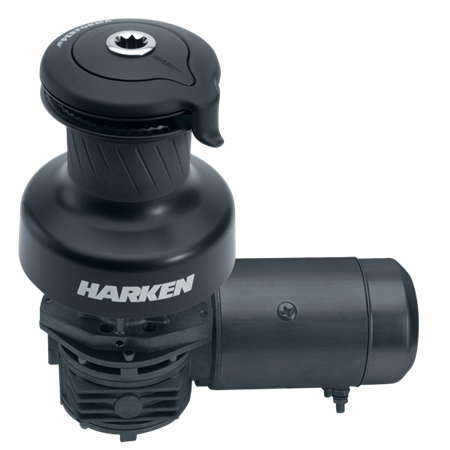

Harken Performa 2 Spd Electric ST Alum Winch Horizontal 12 Volt (60.2STEP12H)

Harken Performa 2 Spd Electric ST Alum Winch Horizontal 12 Volt (60.2STEP12H)

Harken
SKU:
60.2STEP12H
|
UPC:
097653602750
$16,974.11
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.

Part no. 60.2STEP12H: 60 Electric Self-Tailing Performa™ Winch - 2 Speed, 12V, Horizontal

Specifications

  • Weight (kg) 10.2 kg
  • Weight (lb) 22.5 lb
  • Maximum line Ø (mm) 16 mm
  • Maximum line Ø (in) 5/8 in
  • Fasteners (mm) M8 SH mm
  • Fasteners (in) 5/16 SH in
  • Fastener circle (mm) 204 mm
  • Fastener circle (in) 8 in
  • Height (mm) 246 mm
  • Height (in) 9 11/16 in
  • Number of fasteners 6
  • Minimum line Ø (mm) 8 mm
  • Minimum line Ø (in) 5/16 in
  • E (mm) 69 mm
  • E (in) 2 3/4 in
  • F (mm) 181 mm
  • F (in) 7 1/8 in
  • Configuration Self-tailing
  • Speed 2
  • Drum Ø (mm) 120 mm
  • Drum Ø (in) 4 3/4 in
  • Base Ø (mm) 236 mm
  • Base Ø (in) 9 5/16 in
  • Weight of Winch and Motor (kg) 21
  • Weight of Winch and Motor (lb) 46.4
  • Motor weight (kg) 10.8 kg
  • Motor weight (lb) 23.9 lb
  • Line entry height (mm) 116 mm
  • Line entry height (in) 4 9/16 in
  • Gear ratio - 1   4.8
  • Gear ratio - 2   14.4
  • Power ratio - 1   20.3
  • Power ratio - 2   61
  • Racing disconnect rod B60PDR
  • G (mm) 244 mm
  • G (in) 9 5/8 in
