This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.

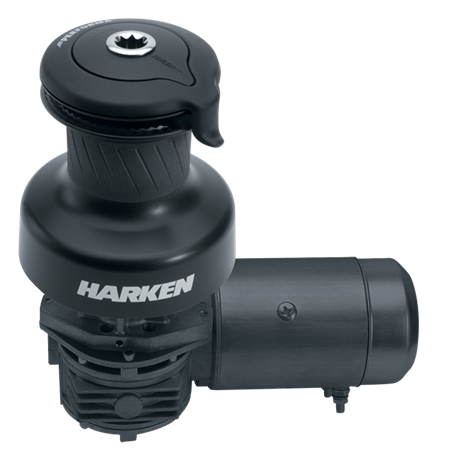

Part no. 40.2STEP12H: 40 Electric Self-Tailing Performa™ Winch - 2 Speed, 12V, Horizontal
Specifications
- Weight (kg) 3.8 kg
- Weight (lb) 8.4 lb
- Maximum line Ø (mm) 12 mm
- Maximum line Ø (in) 1/2 in
- Fasteners (mm) 6 SH mm
- Fasteners (in) 1/4 SH in
- Fastener circle (mm) 123 mm
- Fastener circle (in) 4 7/8 in
- Height (mm) 175 mm
- Height (in) 6 7/8 in
- Number of fasteners 5
- Minimum line Ø (mm) 8 mm
- Minimum line Ø (in) 5/16 in
- E (mm) 43 mm
- E (in) 1 3/4 in
- F (mm) 155 mm
- F (in) 6 1/8 in
- Configuration Self-tailing
- Speed 2
- Drum Ø (mm) 80 mm
- Drum Ø (in) 3 1/8 in
- Base Ø (mm) 157 mm
- Base Ø (in) 6 3/16 in
- Weight of Winch and Motor (kg) 13.5
- Weight of Winch and Motor (lb) 29.7
- Motor weight (kg) 9.7 kg
- Motor weight (lb) 21.3 lb
- Line entry height (mm) 82 mm
- Line entry height (in) 3 1/4 in
- Gear ratio - 1 2.13
- Gear ratio - 2 6.28
- Power ratio - 1 13.50
- Power ratio - 2 39.90
- Racing disconnect rod B40PDR
- G (mm) 227 mm
- G (in) 8 7/8 in
