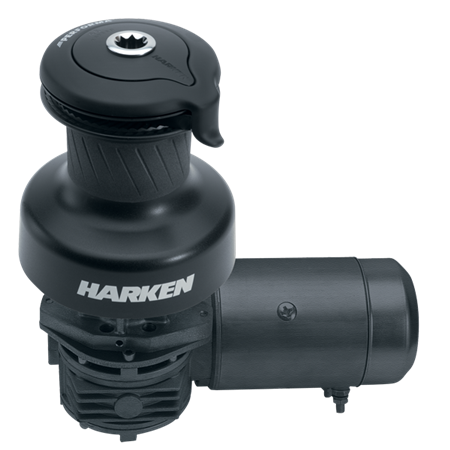

Harken Performa 2 Spd Electric ST Alum Winch Horizontal 12 Volt (46.2STEP12H)

Harken Performa 2 Spd Electric ST Alum Winch Horizontal 12 Volt (46.2STEP12H)

Harken
SKU:
46.2STEP12H
|
UPC:
097653257141
$9,718.88
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.

Part no. 46.2STEP12H: 46 Electric Self-Tailing Performa™ Winch - 2 Speed, 12V, Horizontal

Specifications

  • Weight (kg) 5.2 kg
  • Weight (lb) 11.5 lb
  • Maximum line Ø (mm) 14 mm
  • Maximum line Ø (in) 9/16 in
  • Fasteners (mm) M8 SH mm
  • Fasteners (in) 5/16 SH in
  • Fastener circle (mm) 150 mm
  • Fastener circle (in) 5 7/8 in
  • Height (mm) 202 mm
  • Height (in) 7 15/16 in
  • Number of fasteners 5
  • Minimum line Ø (mm) 8 mm
  • Minimum line Ø (in) 5/16 in
  • E (mm) 43 mm
  • E (in) 1 3/4 in
  • F (mm) 155 mm
  • F (in) 6 1/8 in
  • Configuration Self-tailing
  • Speed 2
  • Drum Ø (mm) 100 mm
  • Drum Ø (in) 3 15/16 in
  • Base Ø (mm) 184 mm
  • Base Ø (in) 7 1/4 in
  • Weight of Winch and Motor (kg) 14.9
  • Weight of Winch and Motor (lb) 32.8
  • Motor weight (kg) 9.7 kg
  • Motor weight (lb) 21.3 lb
  • Line entry height (mm) 90 mm
  • Line entry height (in) 3 9/16 in
  • Gear ratio - 1   2.30
  • Gear ratio - 2   9.17
  • Power ratio - 1   11.70
  • Power ratio - 2   46.50
  • Racing disconnect rod B46PDR
  • G (mm) 227 mm
  • G (in) 8 7/8 in
