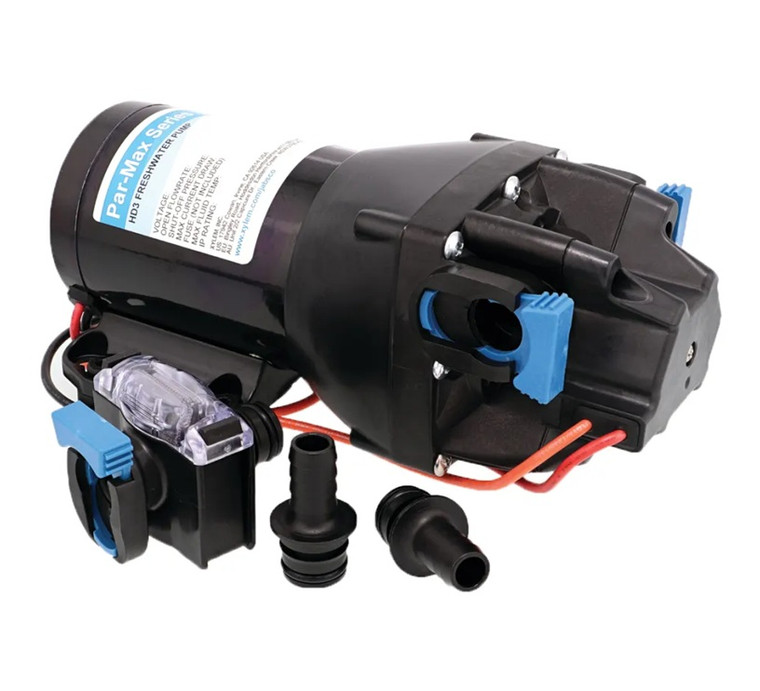

RWB Jabsco Par-Max HD3 Fresh Water Pump - 12v, 11lpm, 60psi

Jabsco Par Max 3 HD 12v Fresh Water Pump 11lpm
J20-208 Jabsco Q301J-118S-3A

A Heavy Duty (HD) version of the above 3.0 GPM 11.3 LPM pressure pump.

This HD model has a 4 chamber quad design pumphead and offers pressure up to 60PSI. HD models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance. The ideal robust heavy duty pump for providing freshwater automatically on pleasure craft up to approx the 9-10 metre range. Includes a 40 mesh plug-in inlet strainer in the box with the pump.

HD Quad 4 chamber automatic pressure pump gives fl ow up to 3 US Gallons per minute (11.3 litres per minute) and pressure up to 60 PSI. Serves up to 3 x 12mm outlets including galley, shower and additional faucet. The Par-Max 3.0 HD gives very smooth water fl ow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.

Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and quick connect plug-in hose ports included - 2 x 12mm barbed for hose. 12 volt only 60 PSI cut-out pressure.

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.
These HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

• Co-molded diaphragm technology for long life and durability
• Heavy duty motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications

• Output up to 11 litres / minute (3 GPM) at open flow
• Pressure switch cuts in at ca. 3,2 bar (45 psi) and cuts out at 4,1 bar (60 psi)
• 4-chamber Santoprene diaphragm and EPDM valves
• Noise-reduced version of the PAR-MAX 3 for heavier duty
• Typically used for potable water systems with 2-3 outlets
• Self-Priming up to 1,8m
• Runs dry without damage
• Equipped with a bypass which enables smoother flow and decreases cycling
• Including straight snap-in ports 2 x 13mm (1/2") hose barb as well as 1 x 40 MESH mini strainer
• Amperage max. 8A; fuse size 15A
• Dimensions: Height 9,7 cm / width 10,9 cm (exlcuding hose ports) / length 21,9 cm
• Alternative to Jabsco 31395-0092, Q301J-118S-3A, 32305-5012-3A
