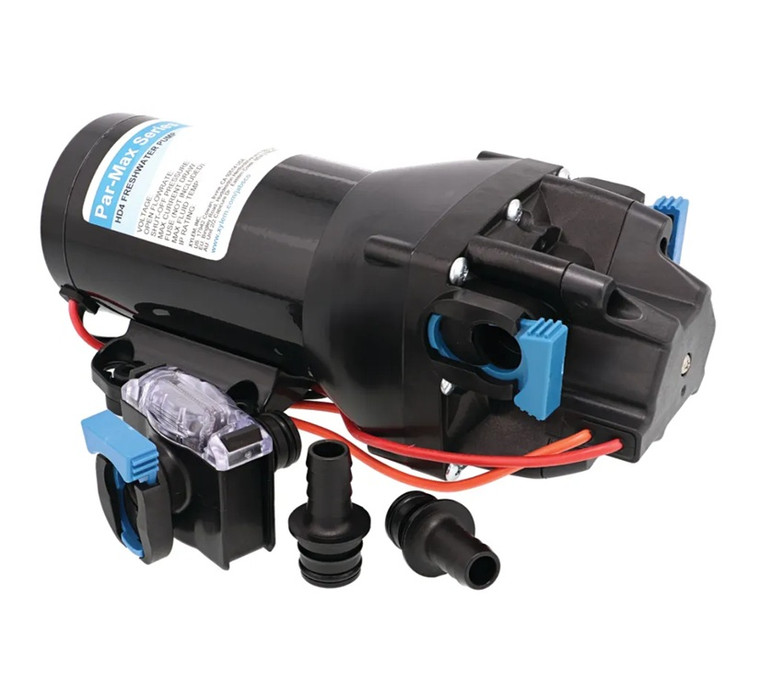

RWB Jabsco Par-Max HD4 Fresh Water Pump - 12v, 15lpm, 60psi

Jabsco Par Max 4 HD 12v Fresh Water Pump 60psi
J20-214 Jabsco Q401J-118S-3A

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.
These HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

• Co-molded diaphragm technology for long life and durability
• Heavy duty motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications

• Output up to 15 litres / minute (4 GPM) at open flow
• Pressure switch cuts in at ca. 3,2 bar (45 psi) and cuts out at 4,1 bar (60 psi)
• 4-chamber Santoprene diaphragm and EPDM valves
• Typically used for potable water systems with 3-4 outlets
• Self-Priming up to 1,8m
• Runs dry without damage
• Equipped with a bypass which enables smoother flow and decreases cycling
• Including straight snap-in ports 2 x 13mm (1/2") hose barb as well as 1 x 40 MESH mini strainer
• Amperage max. 8A; fuse size 15A
• Dimensions: Height 9,7 cm / width 10,4 cm (exlcuding hose ports) / length 23,9 cm
• Alternative to Jabsco 82400-0092, Q401J-118S-3A
