Nodus Factory Block Shackle T
Nodus Factory
$51.28 - $58.72
(No reviews yet)
Write a Review
Nodus Factory
Nodus Factory Block Shackle T

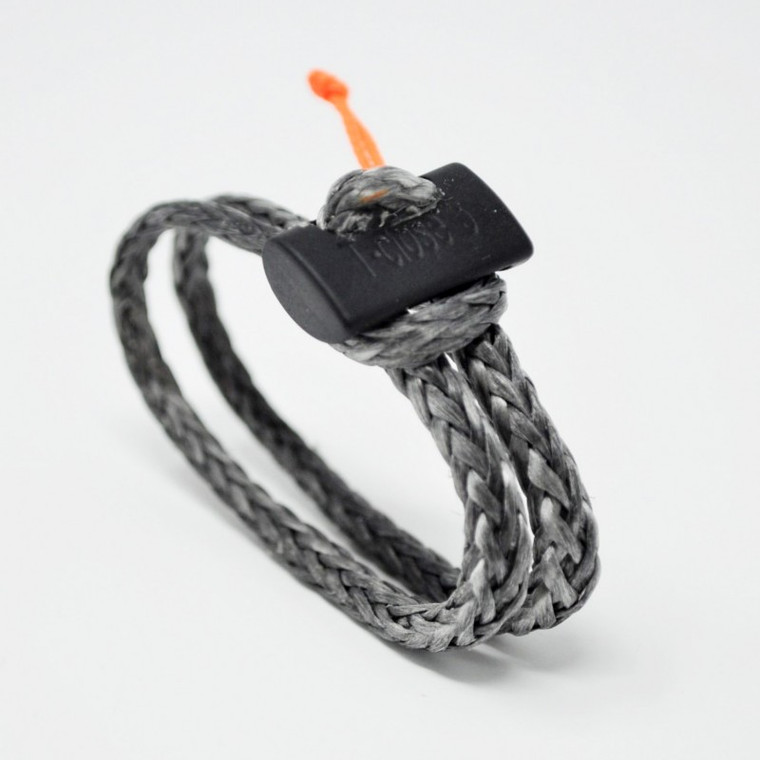

Soft Shackle in Dyneema® for Block T-close® T
- The T® shackle is a Dyneema® textile shackle specially designed for use with wire rope pulleys. It's easy to install, very light and can withstand heavy loads.
- This shackle is compatible with most wire rope Pulleys as Hi-Tech Nodus Factory, Harken, Karver, Ronstan, Selden, Rutgerson... pulleys.
- Materials: Dyneema® / Tech Polymer
Use
- Textile shackle specially designed for pulleys
- Easy to use ¬ Locking ¬ Cap® knot ¬ Quick to open, even under heavy loads
Data sheet
- T-close® connector ¬ Glass-fibre reinforced PA Tech
- 100% Dyneema® SK78 rope, pre-stretched and coated ¬ Light grey / black
- T® shackles are pre-stretched and glued® to prevent elongation when loaded
- Strength certified by Veritas / Calculation of load factor: example A 45° deflection has a load factor of 75%, so if I pull 100 kg, the pulley will only take 75 kg
Avantages
- Textile connector for wire rope pulley
- The flexibility of the soft shackle connector ensures an in-line work with the forces.
Nodus & Tricks
- Refit your existing pulleys with a T shackle by removing the metal becket, valid only for pulleys with an open central axis.

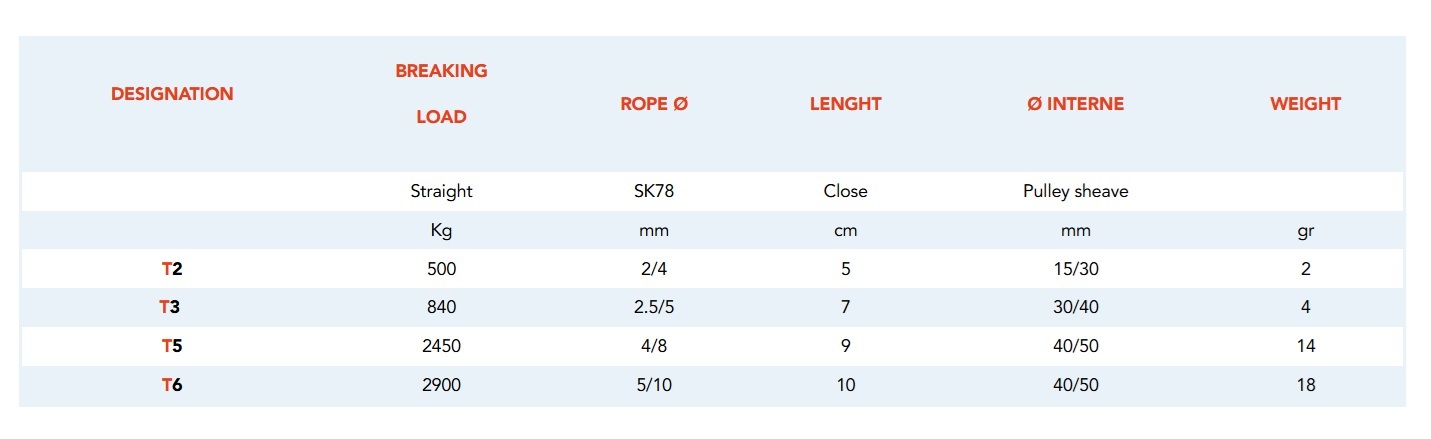

Specifications
