Nodus Factory Connector Nodus-NUB - Shackles & Loops with Nub
Nodus Factory
$70.50 - $164.32
(No reviews yet)
Write a Review
Nodus Factory

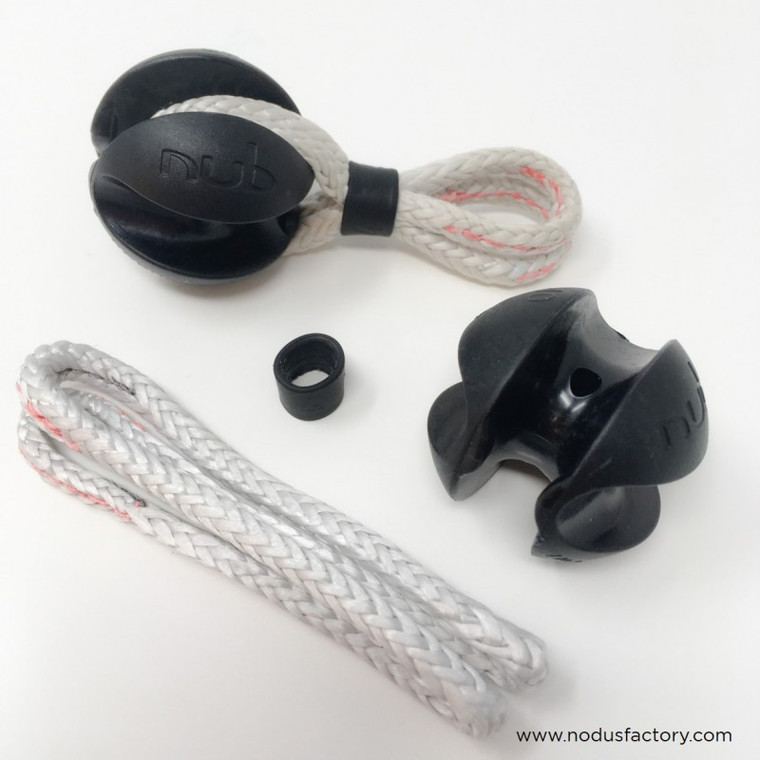

Nodus Factory Connector Nodus-NUB - Shackles & Loops with Nub
Nodus-NUB® Friction - Textile friction pulley
The Nodus-Nub® is a multiaxial spherical low friction textile pulley. Combined with a textile connector, the Nodus-Nub can holds very high loads.
Uses
- Can be used in many applications and with all types of soft ropes thanks to its inherent lubrication
- Ideal for reeving, used on cascading tackles (back-stay, downhaul, running backstay...), return angle, or even on standing riggings (shrouds).
- Easy to install anywhere on the deck : plate, toe rail, mast step... using our textile connectors.
Specifications
- NUB M 8.2: Breaking Load 3600 kg; Type of Fitting - Shackle
- NUB Ms 10.2: Breaking Load 6000 kg; Type of Fitting - Shackle
- NUB L3.2: Breaking Load 3800 kg; Type of Fitting - Loop
- NUB Ls3.2: Breaking Load 3800 kg; Type of Fitting - Loop
Data Sheet
- Nodus-Nub Low friction - in Self-lubricating technical plastic resin - black
Advantages
- Excellent weight/strength ratio
- High impact and UV resistance
- Low friction coeficient for all type of rope, thanks to its inherent lubrification
- 2 times lighter than the aluminium and 6 time lighter than the steel
- Completely secured thanks to its mobile rigid strand
- Reliable, maintenance free
Nodus Tips
- The textile Hook friction is captive on sheets and braces so choose it for your Spinnaker sheets returns.
- Doesn't substitute the high performance pulleys used in dynamic mode.
