Nodus Factory Block-shackle Friction

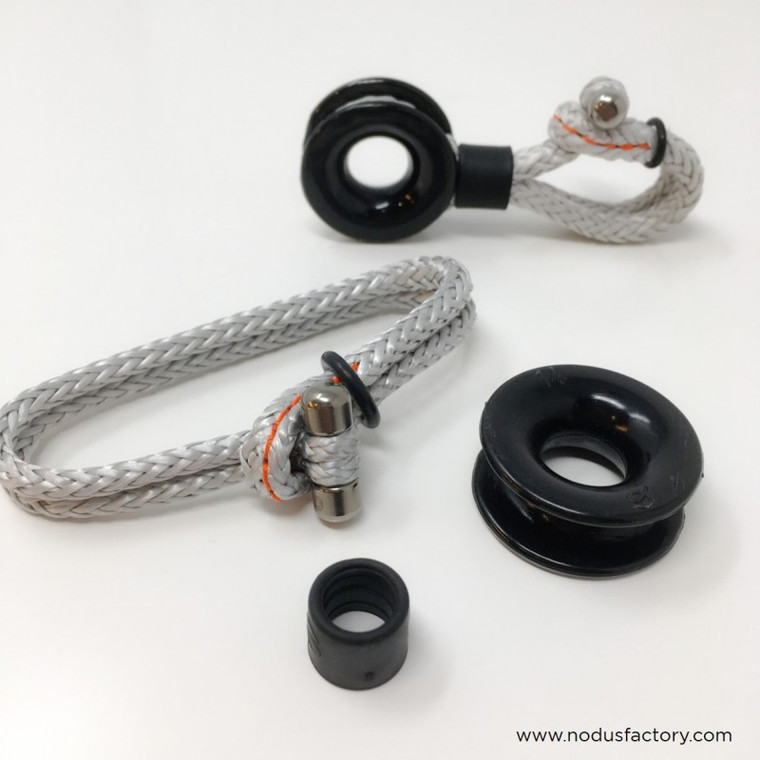

The Block-shackle® friction is a coated textile shackle designed for low-friction rings.
It is supplied with the locking ring, a product of the Plug and Sail™ range.
Uses
- Textile shackle for rings, easy to install and designed for heavy static loads / dynamics
- To guide, deflect and haul any ropes, sheets for genoas, spinnakers, drum bosses barber-hauler and cascading backstay and many other applications.
- An ideal product if you wish to quickly move your point of attachment and hauling
- Static : friction ring Fr - resin
- Dynamic: friction ring FrD - duralumin
Specifications
- BS10 HL: Breaking Load 2900 kg; Loop Length 9 cm
- BS14 HL: Breaking Load 3600 kg; Loop Length 10 cm
- BS20 HL: Breaking Load 6000 kg; Loop Length 11cm
- BS10 HL FrD: Breaking Load 2900 kg; Loop Length 9 cm
- BS14 HL FrD: Breaking Load 3600 kg; Loop Length 10 cm
- BS20 HL FrD: Breaking Load 6000 kg; Loop Length 11 cm
Data Sheet
- T-bône® fastener, Titanium TI 6 "Eco Ti"
- Shackle®, core and sheath made of 100% Dyneema® R2 12fx pre-stretched, coated - Light grey / black
- Block®, clamping and holding ring, made of flexible TPE thermoplastic which can quickly lock and fix a low-friction ring.
- Nodus Factory low friction ring™ made of Self-lubricating technical plastic resin - black or FrD ring in duralumin - grey / orange
Advantages
- Requires no splicing, easy and quick to move
- The Block® ring holds the textile strands parallel to uniformly and optimally distribute the working loads on the ring.
- Coated textile shackle resistant to chafing and UV
- Reliable and maintenance free
Nodus Tips
- Use the Block-shackle for your strap pulleys.
- Check the breaking load of the rings used
- The Block® rings are clamping and holding rings, for pulleys and rings with low friction, on textile loops and with Nodus Factory shackles.
