Wichard Self-locking Long D Shackles (1211-1215)

Wichard Self-locking Long D Shackles (packs)

Wichard
SKU:
1211-1216
|
UPC:
3587790012118
$44.60 - $59.71
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

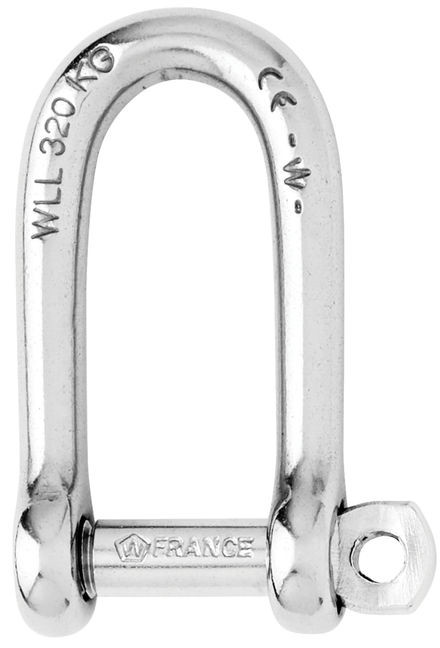

Wichard Self-locking long D shackles

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head

Materials

  • 316 stainless steel grade

Specifications

Part # Weight Working Load Breaking Strength Inside Length Inside Width Pin Diameter
kg lbs kg lbs kg in mm in mm in mm
1211 0.008 705 320 1543 700 0.87 22 0.31 8 0.16 4
1212 0.017 882 400 2205 1000 1.14 29 0.39 10 0.20 5
1213 0.027 1323 600 3527 1600 1.30 33 0.47 12 0.24 6
1214 0.066 2205 1000 5952 2700 1.77 45 0.63 16 0.31 8
1215 0.128 3351 1520 9480 4300 2.17 55 0.79 20 0.39 10
1216 0.240 4580 2080 13220 6000 2.59 66 1.03 26 0.94 12
