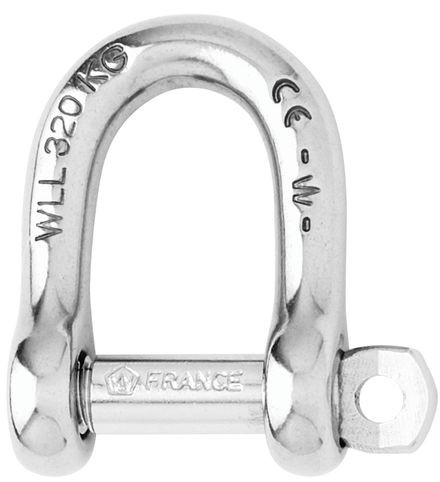

Wichard D Shackles Self-locking (1201-1207)

Wichard D Shackles Self-locking (packs)

Wichard
SKU:
1201-1207
|
UPC:
3587790012026
$45.00 - $113.90
(No reviews yet)
Current Stock:
Minimum Purchase:
5 units
Adding to cart… The item has been added
Description

Wichard Self-locking D shackle

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e)
  • CE marking and batch number

Applications

  • Standard applications of shackle
  • Attachment applications: blocks, head

Materials

  • 316 stainless steel grade

Specifications

Part # Weight Working Load Breaking Strength Inside Length Inside Width Pin Diameter
kg lbs kg lbs kg in mm in mm in mm
1201

0.007

 705 320 1543 700 0.51 13 0.31 8 0.16 4
1202 0.013 882 400 1105 1000 0.63 16 0.39 10 0.20 5
1203 0.022 1323 600 3527 1600 0.79 20 0.47 12 0.24 6
1204 0.055 2205 1000 5952 2700 1.02 26 0.63 16 0.31 8
1205 0.098 3351 1520 9480 4300 1.30 33 0.79 20 0.39 10
1206 0.193 4586 2080 13228 6000 1.54 39 0.94 24 0.47 12
1207 0.312 5291 2400 17637 8000 1.85 47 1.10 28 0.55 14
