Wichard Key Pin D Shackle with Bar
Wichard
$39.40 - $63.20
(No reviews yet)
Write a Review
Wichard

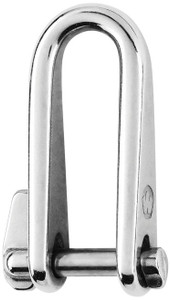

Wichard Key Pin D Shackle with Bar
Wichard key pin shackle with bar
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
Applications
- Perfect product for halyards or applications requiring to open /close the shackle often
Materials
- 316 stainless steel grade
Specifications
Part no. 81432: Key pin shackle with bar - Dia 5 mm
- Working load (kg) 400
- Breaking load (kg) 1200
- Weight (g) 31
- A (mm) 37
- B (mm) 13
- C (mm) 5
- D (mm) 11
- D diameter (mm) 5
- E (mm) 4
- F (mm) 49
- G (mm) 31
- L (mm) 12
Part no. 81433: Key pin shackle with bar - Dia 6 mm
- Working load (kg) 520
- Breaking load (kg) 1700
- Weight (g) 52
- A (mm) 45
- B (mm) 16
- C (mm) 6
- D (mm) 13
- D diameter (mm) 6
- E (mm) 4
- F (mm) 60
- G (mm) 37
- L (mm) 15
Part no. 81434: Key pin shackle with bar - Dia 8 mm
- Working load (kg) 800
- Breaking load (kg) 2500
- Weight (g) 123
- A (mm) 59
- B (mm) 21
- C (mm) 8
- D (mm) 17
- D diameter (mm) 8
- E (mm) 6
- F (mm) 79
- G (mm) 49
- L (mm) 20
