Wichard Captive Pin Long D Shackles (1411-1415)

Wichard Captive Pin Long D Shackles (packs)

Wichard
SKU:
1411-1416
|
UPC:
3587790014112
$38.70 - $89.25
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

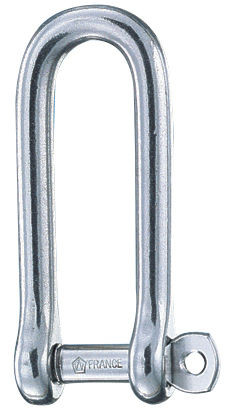

Wichard captive pin long D shackle

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads

Applications

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head

Materials

  • 316 stainless steel grade

Specifications

Part # Weight Working Load Breaking Strength Inside Length Inside Width Pin Diameter
kg lbs kg lbs kg in mm in mm in mm
1411 0.012 705 320 2205 1000 1.22 31 0.31 8 0.16 4
1412 0.024 1058 480 3307 1500 1.54 39 0.39 10 0.20 5
1413

0.040

 1499 680 4850 2200 1.81 46 0.47 12 0.24 6
1414 0.092 2205 1000 7937 3600 2.44 62 0.63 16 0.31 8
1415 0.176 3351 1520 11464 5200 3.07 78 0.79 20 0.39 10
1416 0.284 4620 2100 15430 7000 3.55 90 0.94 24 0.47 12
