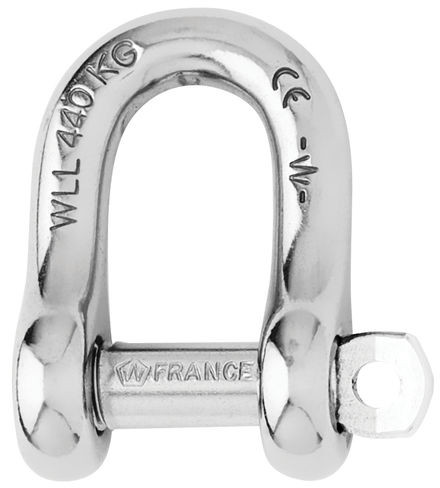

Wichard captive pin D shackles
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loose due to vibrations
- Outstanding working and breaking loads
Applications
- Standard applications of shackle
- Attachment applications: blocks, head
Materials
- 316 stainless steel grade
Specifications
| Part # | Weight | Working Load | Breaking Strength | Inside Length | Inside Width | Pin Diameter | |||||
| kg | lbs | kg | lbs | kg | in | mm | in | mm | in | mm | |
| 1401 | 0.009 | 705 | 320 | 2205 | 1000 | 0.51 | 13 | 0.31 | 8 | 0.16 | 4 |
| 1402 | 0.016 | 1058 | 480 | 3307 | 1500 | 0.63 | 16 | 0.39 | 10 | 0.20 | 5 |
| 1403 | 0.028 | 1896 | 860 | 4850 | 2200 | 0.79 | 20 | 0.47 | 12 | 0.24 | 6 |
| 1404 | 0.061 | 2205 | 1000 | 7937 | 3600 | 1.02 | 26 | 0.63 | 16 | 0.31 | 8 |
| 1405 | 0.114 | 3351 | 1520 | 11464 | 5200 | 1.30 | 33 | 0.79 | 20 | 0.39 | 10 |
| 1406 | 0.188 | 4586 | 2080 | 15432 | 7000 | 1.54 | 39 | 0.94 | 24 | 0.47 | 12 |
