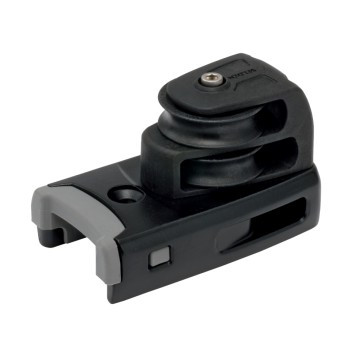

Selden System 42 End Control

Selden System 42 End Controls

Selden
SKU:
S444-112-01 to 04
$176.18 - $350.68
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

System 42 Main Sheet Parts - End Controls

Seldén system 42 can be used for boats up to approximately 65'.

FEATURES

  • The main sheet car is black anodised, extruded aluminium and runs on Torlon® ball bearings.
  • Ø50 mm plain bearing Acetal sheaves and composite sheave houses for control lines.
  • Cam cleat 38 used on end controls.
  • AISI 316 mirror finished stainless toggles for Seldén PBB 80 and RBB 80 blocks.
  • The toggle/sheet block is supported by a rubber stand-up collar.
  • End controls with rubber shock absorbers and integral beckets for control lines.
  • Suitable max size of control line is Ø10 mm.

SPECIFICATIONS

444-112-01: END CONTROL, SYSTEM 42

  • Weight: 529.00 g

  • System: 42
  • Purchase: 4 N:1
  • Max control line Ø: 10 mm
  • Length: 138 mm
  • Width: 70 mm
  • Fasteners: 1x MFT M10
  • Comment: Screw length, L=33 + deck thickness, nut etc.

444-112-02: END CONTROL, SYSTEM 42, CAM, PORT

  • Weight: 599.00 g

  • System: 42
  • Purchase: 4 N:1
  • Max control line Ø: 10 mm
  • Length: 143 mm
  • Width: 101 mm
  • Fasteners: 1x MFT M10
  • Comment: Cam cleat 38, Screw length, L=33 + deck thickness, nut etc.

444-112-03: END CONTROL, SYSTEM 42, CAM, STARBOARD

  • Weight: 599.00 g

  • System: 42
  • Purchase: 4 N:1
  • Max control line Ø: 10 mm
  • Length: 143 mm
  • Width: 101 mm
  • Fasteners: 1x MFT M10
  • Comment: Cam cleat 38, Screw length, L=33 + deck thickness, nut etc.

444-112-04: END CONTROL, SYSTEM 42, W/ CHEEK

  • Weight: 401.00 g

  • System: 42
  • Purchase: 3 N:1
  • Max control line Ø: 12 mm
  • Length: 138 mm
  • Width: 70 mm
  • Fasteners: 1x MFT M10
  • Comment: PBB50 cheek block, Screw length, L=33 + deck thickness, nut etc.
