Selden System 22 End Controls
System 22 is based on a 22 mm track and used for keelboats and yachts up to approximately 33 feet.
Technical Features System 22
- The main sheet cars are black anodised, extruded aluminium. They run on Torlon® ball bearings.
- End fittings are glass fibre reinforced composite with rubber buffer bearings.
- Ø30/40 mm plain bearing Acetal sheaves for control lines.
- AISI 316 mirror finished stainless toggles suit Seldén PBB50 blocks and the MRB 60 block.
- The toggle/sheet block is supported by a rubber stand-up collar.
- Suitable max size of control line is Ø8 mm.
- End controls with Cam cleat 27, control line Ø7 mm.
Specifications

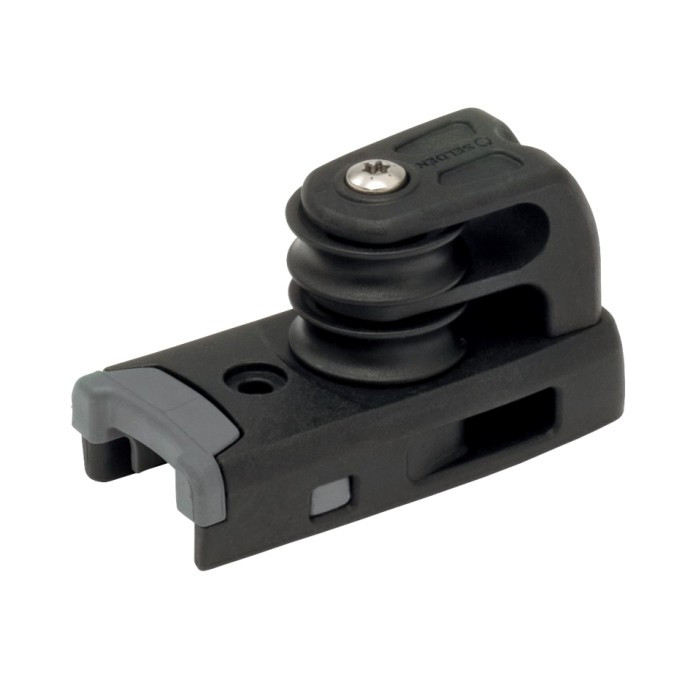

Part# 442-112-01 - END CONTROL, SYSTEM 22
- Weight: 124.00 g
- System: 22
- SWL: 300 kg
- Breaking load: 600 kg
- Purchase: 6 N:1
- Max control line Ø: 7 mm
- Length: 87 mm
- Width: 39 mm
- Fasteners: 1x MRT M5
- Comment: Screw length, L=18.5 + deck thickness, nut etc.
Part# 442-112-02 - END CONTROL PORT/CAM, SYSTEM 22
- Weight: 225.00 g
- System: 22
- SWL: 300 kg
- Breaking load: 600 kg
- Purchase: 4 N:1
- Max control line Ø: 7 mm
- Length: 87 mm
- Width: 85 mm
- Fasteners: 1x MRT M5
- Comment: Cam cleat 27, Screw length, L=18.5 + deck thickness, nut etc.
Part# 442-112-03 - END CONTROL, STARBOARD/CAM, SYSTEM 22
- Weight: 225.00 g
- System: 22
- SWL: 300 kg
- Breaking load: 600 kg
- Purchase: 4 N:1
- Max control line Ø: 7 mm
- Length: 87 mm
- Width: 85 mm
- Fasteners: 1x MRT M5
- Comment: Cam cleat 27, Screw length, L=18.5 + deck thickness, nut etc.
Part# 442-112-04 - END CONTROL WITH CHEEK, SYSTEM 22
- Weight: 93.00 g
- System: 22
- SWL: 300 kg
- Breaking load: 600 kg
- Purchase: 4 N:1
- Max control line Ø: 7 mm
- Length: 87 mm
- Width: 39 mm
- Fasteners: 1x MFT M5
- Comment: BBB30 cheek block, Screw length, L=18.5 + deck thickness, nut etc.
