Description

Please note: 20287 is on back order with ETA on 20 September 2025

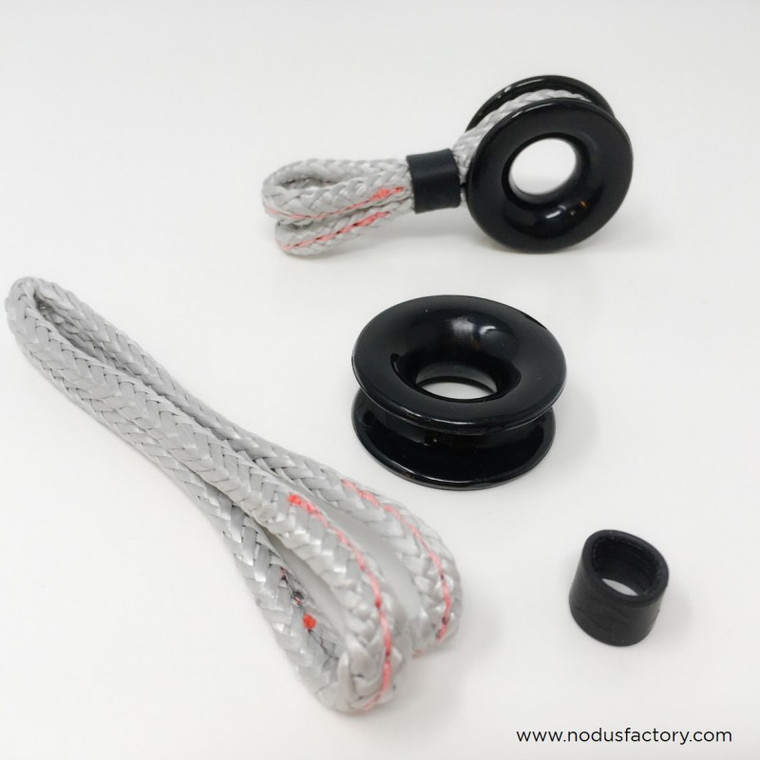

The Block-loop® friction, is a coated textile loop designed for a low-friction ring.

It is supplied with the locking ring, a product of the Plug and Sail™ range.

Uses

  • Textile loop for rings, easy to use and designed for a heavy static load.
  • To guide, deflect and haul any ropes, sheets for genoas, spinnakers, drum bosses barber-hauler and cascading backstay and many other applications.
  • Ideal for the tack on an asymmetric spinnaker
  • Static : friction ring Fr - resin
  • Dynamic: friction ring FrD - duralumin

Specifications

  • BL14 Friction Fr: Breaking Load 3800 kg; Loop Length 5 cm
  • BL20 Friction Fr: Breaking Load 6300 kg; Loop Length 5 cm
  • BL14 Friction FrD: Breaking Load 3800 kg; Loop Length 5 cm
  • BL20 Friction FrD: Breaking Load 6300 kg; Loop Length 5 cm

Data Sheet

  • Loop®, core and sheath made of 100% Dyneema® R2 12fx pre-stretched, coated - Light grey / black
  • Block®, clamping and holding ring, made of flexible TPE thermoplastic which can quickly lock and fix a low-friction ring.
  • Nodus Factory low friction ring™ made of Self-lubricating technical plastic resin ¬ black or FrD ring in duralumin - grey / orange

Advantages

  • Requires no splicing, easy and quick to install.
  • The Block® ring holds the textile strands parallel to uniformly and optimally distribute the working loads on the ring.
  • Coated textile loop, resistant to chafing and UV.
  • Reliable and maintenance free.

Nodus Tips

  • You can use the Block-loop to strap your pulleys.
  • Check the breaking load of the rings used.
  • The Block® rings are clamping and holding rings, for pulleys and rings with low friction, on textile loops and with Nodus Factory shackles.
