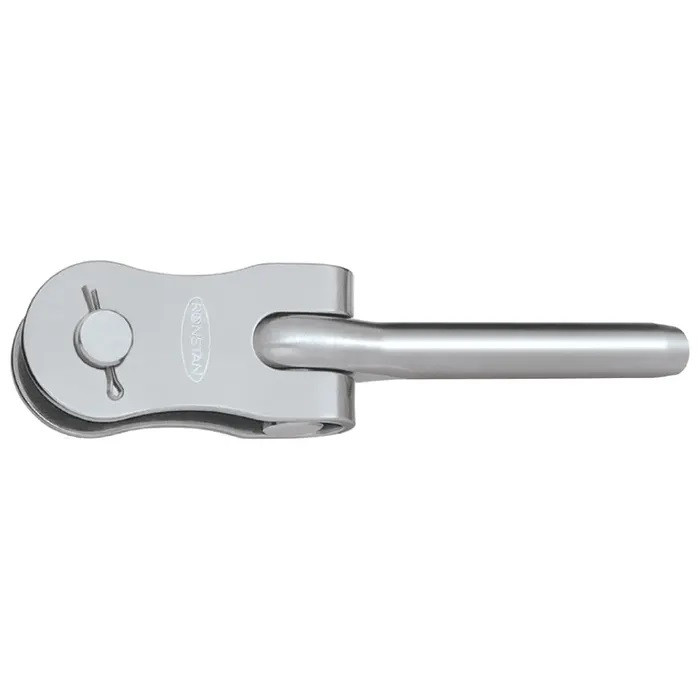

Ronstan Swage Toggles Metric Wire
| SWAGE TOGGLES METRIC WIRE | |||||||||
| Product No. | Description/Thread | Cable Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
| RF1507M0304 | 3mm Wire, 6.4mm (1/4”) Pin | 3.0 | 7.8 | 9.1 | 37.9 | 77.0 | 16.8 | 6.2 | 44 |
| RF1507M0404 | 4mm (5/32”) Wire, 6.4mm (1/4”) Pin | 4.0 | 7.8 | 9.1 | 43.2 | 87.1 | 16.8 | 6.2 | 44 |
| RF1507M0405 | 4mm (5/32”) Wire, 7.9mm (5/16”) Pin | 4.0 | 9.4 | 11.2 | 48.1 | 93.6 | 20.7 | 7.9 | 74 |
| RF1507M0504 | 5mm Wire, 6.4mm (1/4”) Pin | 5.0 | 7.8 | 9.1 | 37.1 | 92.6 | 16.5 | 6.2 | 53 |
| RF1507M0505 | 5mm Wire, 7.9mm (5/16”) Pin | 5.0 | 9.4 | 11.2 | 48.2 | 103.7 | 20.7 | 7.9 | 56 |
| RF1507M0506 | 5mm Wire, 9.5mm (3/8”) Pin | 5.0 | 10.0 | 14.4 | 49.4 | 104.9 | 23.0 | 9.4 | 130 |
| RF1507M0606 | 6mm Wire, 9.4mm (3/8”) Pin | 13/32 | 9/16 | 2 9/32 | 5 1/16 | 29/32 | 3/8 | 129 | |
| RF1507M0608 | 6mm Wire, 12.7mm (1/2”) Pin | 6.0 | 13.9 | 17.5 | 70.9 | 141.3 | 29.4 | 12.4 | 285 |
| RF1507M0708 | 7mm & 9/32” Wire, 12.7mm (1/2”) Pin | 7.0 | 13.9 | 17.5 | 73.2 | 151.9 | 29.4 | 12.4 | 332 |
| RF1507M0808 | 8mm (5/16”) Wire, 12.7mm (1/2”) Pin | 8.0 | 13.9 | 17.5 | 72.1 | 160.6 | 29.4 | 12.4 | 365 |
| RF1507M0810 | 8mm (5/16”) Wire, 15.9mm (5/8”) Pin | 8.0 | 17.0 | 20.8 | 87.5 | 176.0 | 42.2 | 15.7 | 492 |
| RF1507M1010 | 10mm Wire, 15.9mm (5/8”) Pin | 10.0 | 17.0 | 20.8 | 87.7 | 198.2 | 42.2 | 15.7 | 540 |
| RF1507M1212 | 12mm Wire, 19mm (3/4”) Pin | 12.0 | 20.0 | 23.8 | 108.2 | 249.0 | 46.0 | 18.9 | 930 |
| RF1507M1414 | 14mm Wire, 22.2mm (7/8”) Pin | 14.0 | 26.5 | 28.5 | 120.4 | 278.3 | 44.4 | 22.0 | 1460 |
| RF1507M1616 | 16mm (5/8”) Wire, 25.4mm (1”) Pin | 16.0 | 29.3 | 31.8 | 147.8 | 324.5 | 60.3 | 25.2 | 2350 |
| RF1507M1920 | 19mm & 3/4” Wire, 31.8mm (1-1/4”) Pin | 19.0 | 36.5 | 42.5 | 178.1 | 387.8 | 74.1 | 31.7 | 4674 |
| RF1507M2220 | 22mm & 7/8” Wire, 31.8mm (1-1/4”) Pin | 22.0 | 36.5 | 42.5 | 179.6 | 425.0 | 74.1 | 31.7 | 5530 |
| RF1507M2622 | 26mm & 1” Wire, 34.9mm (1-3/8”) Pin | 26.0 | 36.5 | 36.0 | 192.6 | 480.0 | 76.0 | 34.8 | 8378 |
PRODUCT INFORMATION
- For wire end termination allowing movement in two planes to minimise the fatiguing effects of cyclic action.
APPLICATIONS
-
For wire end termination to suit metric wires
MATERIALS
-
Grade 316 Stainless Steel
