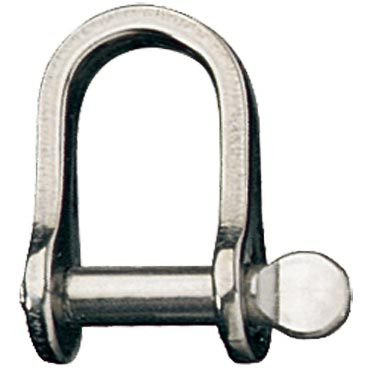

Ronstan Standard Dee Shackle, Coined Pin Head (RF1806) *Indicative product image. Actual product may differ slightly from that shown

Ronstan Standard Dee Shackle, Coined Pin Head

Ronstan
SKU:
RF1806/RF1851 sstock
|
UPC:
9316800090594
$6.06 - $8.69
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF1806: Stainless Steel D Shackle, 5/32" Pin
Coined pin head

SPECIFICATIONS

    • Weight (g) 5
    • P.L. B.L. (kg) 600
    • U.D.L. B.L. (kg) 800
    • Shackle Pin Product No. -
    • A (mm) 4.0
    • B (mm) 16.0
    • C (mm) 10.0

RF1851: Stainless Steel D Shackle, 1/8" Pin
Coined pin head

SPECIFICATIONS

    • Weight (g) 2
    • P.L. B.L. (kg) 280
    • U.D.L. B.L. (kg) 375
    • Shackle Pin Product No. -
    • A (mm) 3.2
    • B (mm) 12.0
    • C (mm) 9.0

Notes:

  • UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
  • PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.

FEATURES

  • High strength to weight ratio
  • Premium quality, rated

MATERIALS

  • Grade 316 stainless steel bodies and pins
