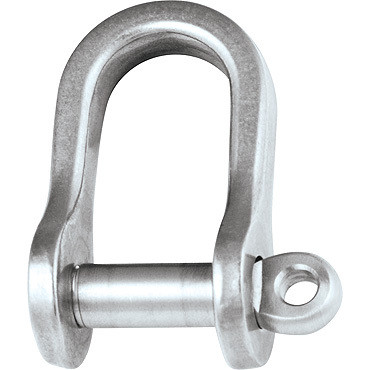

Ronstan Shackle, Standard Dee, Seizing Hole, 8mm (5/16 ) Pin (RF618H)

Ronstan Shackle, Standard Dee, Seizing Hole, 8mm (5/16 ) Pin

Ronstan
SKU:
RF618H (sstock)
|
UPC:
9316800295586
$23.09
(No reviews yet)
Current Stock:
16
Adding to cart… The item has been added
Description

RF618H: Stainless Steel D Shackle, 5/16" Pin, Coined Head with Hole

FEATURES

  • High strength to weight ratio
  • Premium quality, rated

SPECIFICATIONS

  • Weight (g) 50
  • P.L. B.L. (kg) 2700
  • U.D.L. B.L. (kg) 3600
  • A (mm) 7.9
  • B (mm) 29
  • C (mm) 16

Notes:

  • UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.
  • PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. Shackle pins drilled for seizing wire.

APPLICATIONS

  • Many shapes and sizes to suit any application

MATERIALS

  • Grade 316 stainless steel bodies and pins
