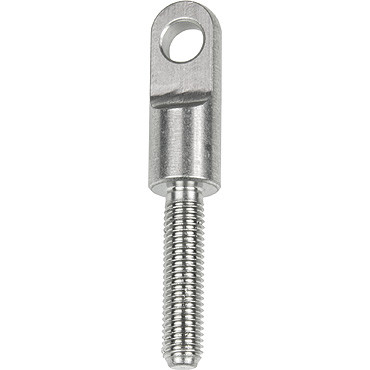

Ronstan Eyebolts, Turned & Pressed Eye (Part Numbers RF5270, RF5271, RF5272)

Ronstan Eyebolts, Turned & Pressed Eye

Ronstan
SKU:
RF5270-RF5280
|
UPC:
9316800237005
$29.07 - $125.87
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF5270: 27mm Eyebolt, 1/4" UNF Thread
Turned and Pressed Eye. 316 Stainless Steel Eyebolt.

SPECIFICATIONS

    • Eyebolt Stainless Steel 27mm x 1/4”UNF Thread
    • Weight (g) 19
    • A (mm) 6.4
    • B (mm) 4.8
    • C (mm) 50.0
    • D (mm) 27.0
    • E (mm) 14.4

RF5271: 54mm Eyebolt, 1/4" UNF Thread
Turned and Pressed Eye. 316 Stainless Steel Eyebolt.

SPECIFICATIONS

    • Eyebolt Stainless Steel 54mm x 1/4”UNF Thread
    • Weight (g) 27
    • A (mm) 6.4
    • B (mm) 4.8
    • C (mm) 77.0
    • D (mm) 54.0
    • E (mm) 14.4

RF5272: 9mm Eyebolt, M6 Thread
Turned and Pressed Eye. 316 Stainless Steel Eyebolt. Suits RF5266

SPECIFICATIONS

    • M6 thread type.
    • Eyebolt Stainless Steel 9mm x M6 Thread, suits RF5266
    • Weight (g) 18
    • A (mm) 6.1
    • B (mm) 4.8
    • C (mm) 31.0
    • D (mm) 9.0
    • E (mm) 14.4

RF5280: 27mm Anchor Bolt, 1/4" UNF Thread
Turned and Pressed Eye. 316 Stainless Steel

SPECIFICATIONS

    • Supplied with washer and nut
    • Weight (g) 26
    • A (mm) 6.4
    • B (mm) 4.8
    • C (mm) 50.0
    • D (mm) 27.0
    • E (mm) 14.4

MATERIALS

  • Grade 316 stainless steel
