Spinlock TSR20 Low Organisers 2-10 x 20mm Sheave (1-9 rope)

TSR20 Low Sheave Organiser, aForward Organiser for diverting high loaded lines

• 20mm and 30mm diameter alloy sheaves
• 30mm sheaves for diverting large deflection angles and large diameter lines
• All rotating sheaves with plain bearings
• Fixed Sheaves can be inserted in the organiser to further increase deflection loads
• Alloy top rails
• Modular design and assembly – Sheaves can be moved to any spacing
• Tulip shaped design reduces friction from vertical defection
• Low profile design
• Simple inserting and removal of endless lines
• Central shaft designed to spread load through laminate
• Titanium parts available to further reduce weight

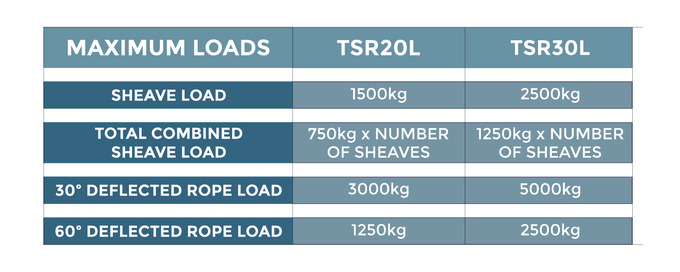

Load Table

TSR20 Low Sheave Organiser

MAXIMUM LOADS

• Sheave load = 1500kg
• Total combined sheave load = 750kg x no. sheaves
• 30˚ Deflected rope load = 3000kg
• 60˚ Deflected rope load = 1250kg

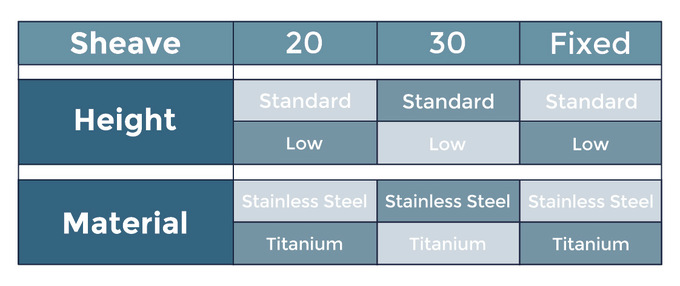

TSR Range Tips

When to use fixed sheaves?

• Use fixed sheaves when deflections are low or non-existent and for increased stability and support for highly loaded lines

When to use Titanium?

• Specify Titanium when weight saving is premium

When to use low sheave TSRL?

• Use low sheave versions Where space is restricted such as in-deck tunnel systems and mast bases.

When to use larger diameter 30mm sheaves?

• Use 30mm sheaves for diverting highly loaded lines, diverting large deflections and large diameter lines.

Part Numbers

• SPTSR20L/2: Low Organiser 2 x 20mm Sheave (1 rope) with min sheave spacing
• SPTSR20L/3: Low Organiser 3 x 20mm Sheave (2 rope) with min sheave spacing
• SPTSR20L/4: Low Organiser 4 x 20mm Sheave (3 rope) with min sheave spacing
• SPTSR20L/5: Low Organiser 5 x 20mm Sheave (4 rope) with min sheave spacing
• SPTSR20L/6: Low Organiser 6 x 20mm Sheave (5 rope) with min sheave spacing
• SPTSR20L/7: Low Organiser 7 x 20mm Sheave (6 rope) with min sheave spacing
• SPTSR20L/8: Low Organiser 8 x 20mm Sheave (7 rope) with min sheave spacing
• SPTSR20L/9: Low Organiser 9 x 20mm Sheave (8 rope) with min sheave spacing
• SPTSR20L/10: Low Organiser 10 x 20mm Sheave (9 rope) with min sheave spacing
• SPTSR20L-ESHV: End Sheave Assembly Low - Pair (2)
• SPTSR20L-SHV: Sheave Assembly Low - Single (1)

Resources/References

• TSR Fitting Instructions
• TSR30L Drill Guides
• TSR20 Drill Guides
• TSR20L Drill Guides
• TSR30 Drill Guides
