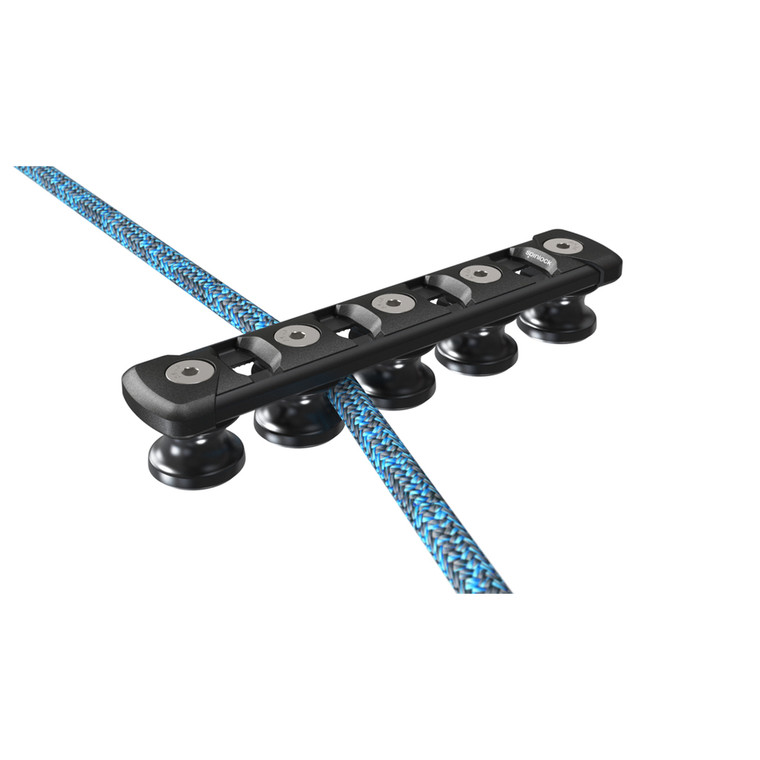

Spinlock TSR30 Aft Organisers 2-10 x 30mm Sheaves
TSR Aft Organisers for diverting lines from clutches and jammers
- 20mm and 30mm diameter alloy sheaves
- 30mm sheaves for diverting large deflection angles and large diameter lines
- All rotating sheaves with plain bearings
- Fixed Sheaves can be inserted in the organiser to further increase deflection loads
- Alloy top rails
- Modular design and assembly – Sheaves can be moved to any spacing
- Tulip shaped design reduces friction from vertical defection
- Low profile design
- Simple inserting and removal of endless lines
- Central shaft designed to spread load through laminate
- Titanium parts available to further reduce weight
Load Table
TSR Aft Organiser
MAXIMUM LOADS
- Sheave load = 1500kg
- Total combined sheave load = 750kg x no. sheaves
- 30˚ Deflected rope load = 3000kg
- 60˚ Deflected rope load = 1250kg
TSR Range Tips
When to use fixed sheaves?
- Use fixed sheaves when deflections are low or non-existent and for increased stability and support for highly loaded lines
When to use Titanium?
- Specify Titanium when weight saving is premium
When to use low sheave TSRL?
- Use low sheave versions Where space is restricted such as in-deck tunnel systems and mast bases.
When to use larger diameter 30mm sheaves?
- Use 30mm sheaves for diverting highly loaded lines, diverting large deflections and large diameter lines.
Part Numbers
- SPTSR30/2: TSR Aft Organiser with 2 x 30mm Sheave
- SPTSR30/3: TSR Aft Organiser with 3 x 30mm Sheave
- SPTSR30/4: TSR Aft Organiser with 4 x 30mm Sheave
- SPTSR30/5: TSR Aft Organiser with 5 x 30mm Sheave
- SPTSR30/6: TSR Aft Organiser with 6 x 30mm Sheave
- SPTSR30/7: TSR Aft Organiser with 7 x 30mm Sheave
- SPTSR30/8: TSR Aft Organiser with 8 x 30mm Sheave
- SPTSR30/9: TSR Aft Organiser with 9 x 30mm Sheave
- SPTSR30/10: TSR Aft Organiser with 10 x 30mm Sheave
