Spinlock TSR20 Aft Organisers

Spinlock TSR20 Aft Organisers 2-10 x 20mm Sheaves (1-9 rope)

Spinlock
SKU:
SPTSR20/2-10
|
UPC:
5025138405348
$403.97 - $2,151.54
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

TSR Aft Organisers for diverting lines from clutches and jammers

  • 20mm and 30mm diameter alloy sheaves
  • 30mm sheaves for diverting large deflection angles and large diameter lines
  • All rotating sheaves with plain bearings
  • Fixed Sheaves can be inserted in the organiser to further increase deflection loads
  • Alloy top rails
  • Modular design and assembly – Sheaves can be moved to any spacing
  • Tulip shaped design reduces friction from vertical defection
  • Low profile design
  • Simple inserting and removal of endless lines
  • Central shaft designed to spread load through laminate
  • Titanium parts available to further reduce weight

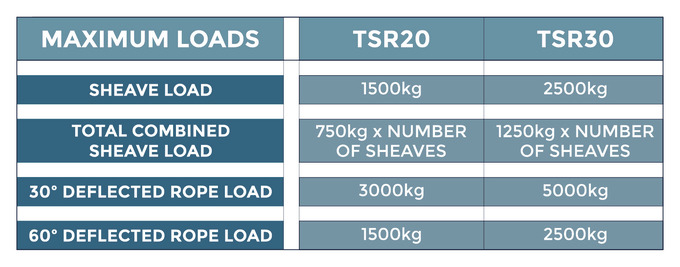

Load Table


TSR Aft Organiser

MAXIMUM LOADS

  • Sheave load = 1500kg
  • Total combined sheave load = 750kg x no. sheaves
  • 30˚ Deflected rope load = 3000kg
  • 60˚ Deflected rope load = 1250kg

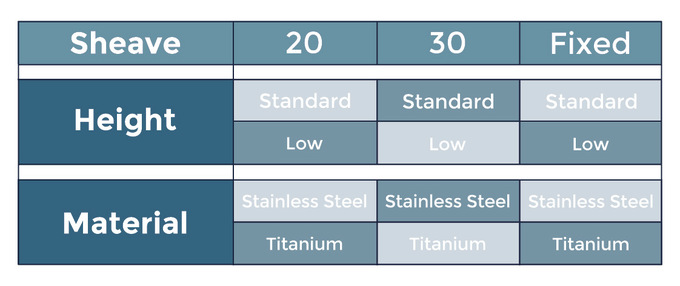

TSR Range Tips


When to use fixed sheaves?

  • Use fixed sheaves when deflections are low or non-existent and for increased stability and support for highly loaded lines

When to use Titanium?

  • Specify Titanium when weight saving is premium

When to use low sheave TSRL?

  • Use low sheave versions Where space is restricted such as in-deck tunnel systems and mast bases.

When to use larger diameter 30mm sheaves?

  • Use 30mm sheaves for diverting highly loaded lines, diverting large deflections and large diameter lines.



Part Numbers

  • SPTSR20/2: Aft Organiser 2 x 20mm Sheave (1 rope) with min sheave spacing
  • SPTSR20/3: Aft Organiser 3 x 20mm Sheave (2 rope) with min sheave spacing
  • SPTSR20/4: Aft Organiser 4 x 20mm Sheave (3 rope) with min sheave spacing
  • SPTSR20/5: Aft Organiser 5 x 20mm Sheave (4 rope) with min sheave spacing
  • SPTSR20/6: Aft Organiser 6 x 20mm Sheave (5 rope) with min sheave spacing
  • SPTSR20/7: Aft Organiser 7 x 20mm Sheave (6 rope) with min sheave spacing
  • SPTSR20/8: Aft Organiser 8 x 20mm Sheave (7 rope) with min sheave spacing
  • SPTSR20/9: Aft Organiser 9 x 20mm Sheave (8 rope) with min sheave spacing
  • SPTSR20/10: Aft Organiser 10 x 20mm Sheave (9 rope) with min sheave spacing
  • SPTSR20-ESHV End Sheave Assembly - Pair (2)
