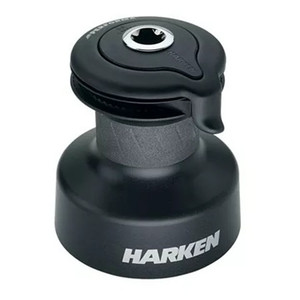

Harken Performa 2 Speed Alum Self-Tailing Winch (46.2STP)

Harken Performa 2 Speed Alum Self-Tailing Winch (46.2STP)

Harken
SKU:
46.2STP
|
UPC:
097653248842
$2,942.30
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Part no. 46.2STP: 46 Self-Tailing Performa™ Winch - 2 Speed

Specifications

  • Weight (kg) 5.2 kg
  • Weight (lb) 11.5 lb
  • Maximum line Ø (mm) 14 mm
  • Maximum line Ø (in) 9/16 in
  • Fasteners (mm) M8 SH mm
  • Fasteners (in) 5/16 SH in
  • Fastener circle (mm) 150 mm
  • Fastener circle (in) 5 7/8 in
  • Height (mm) 202 mm
  • Height (in) 7 15/16 in
  • Number of fasteners 5
  • Minimum line Ø (mm) 8 mm
  • Minimum line Ø (in) 5/16 in
  • Configuration Self-tailing
  • Speed 2
  • Drum Ø (mm) 100 mm
  • Drum Ø (in) 3 15/16 in
  • Base Ø (mm) 184 mm
  • Base Ø (in) 7 1/4 in
  • Line entry height (mm) 90 mm
  • Line entry height (in) 3 9/16 in
  • Gear ratio - 1   2.30
  • Gear ratio - 2   9.17
  • Power ratio - 1   11.70
  • Power ratio - 2   46.50
