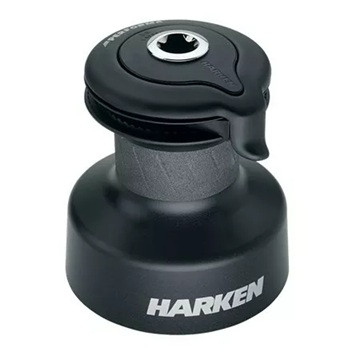

Harken Performa 2 Speed Alum Self-Tailing Winch (35.2STP)

Harken Performa 2 Speed Alum Self-Tailing Winch (35.2STP)

Harken
SKU:
35.2STP
|
UPC:
84253900
$1,719.19
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Part no. 35.2STP: 35 Self-Tailing Performa™ Winch - AL/2 Speed

Specifications

  • Minimum line Ø (mm) 6 mm
  • Minimum line Ø (in) 5/16 in
  • Maximum line Ø (mm) 10 mm
  • Maximum line Ø (in) 1/2 in
  • Configuration Self-tailing
  • Speed 2
  • Drum Ø (mm) 73 mm
  • Drum Ø (in) 2 7/8 in
  • Base Ø (mm) 120 mm
  • Base Ø (in) 4 3/4 in
  • Height (mm) 170 mm
  • Height (in) 6 11/16 in
  • Weight (kg) 3.6 kg
  • Weight (lb) 7.9 lb
  • Line entry height (mm) 59 mm
  • Line entry height (in) 2 3/10 in
  • Fastener circle (in) 4 in
  • Fastener circle (mm) 100 mm
  • Fasteners (mm) M6 SH mm
  • Fasteners (in) 1/4 SH in
  • Number of fasteners 5
  • Gear ratio - 1   1.1
  • Gear ratio - 2   4.25
  • Power ratio - 1   7.8
  • Power ratio - 2   29.8
