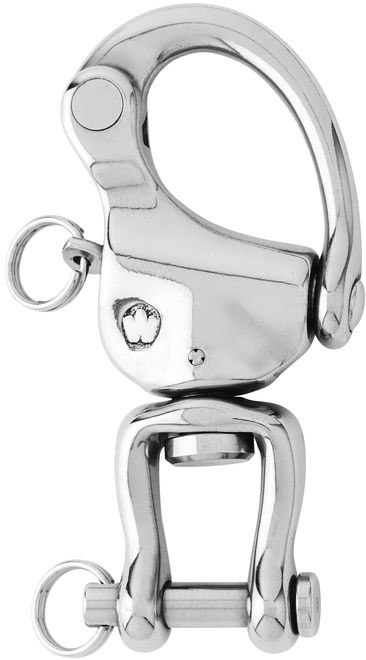

Wichard Snap Shackles Swivel Eye w/ Clevis Pin
Wichard HR snap shackle - With clevis pin swivel
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Applications
- Snap shackle applications
Specifications
Part no. 2474: HR snap shackle - With clevis pin swivel - Length: 70 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 70
- Working load (kg): 800
- Breaking load (kg): 1600
- Weight (g): 71
- A (mm): 16
- B (mm): 15
- C (mm): 12
- d diameter (mm): 6
Part no. 2476: HR snap shackle - With clevis pin swivel - Length: 90 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 90
- Working load (kg): 1280
- Breaking load (kg): 3800
- Weight (g): 154
- A (mm): 21
- B (mm): 17
- C (mm): 11
- d diameter (mm): 7
Part no. 2478: HR snap shackle - With clevis pin swivel - Length: 120 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 120
- Working load (kg): 2400
- Breaking load (kg): 7000
- Weight (g): 417
- A (mm): 26
- B (mm): 27
- C (mm): 18
- d diameter (mm): 11
