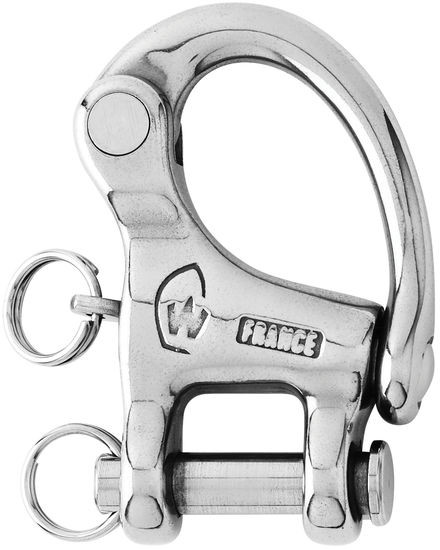

Wichard Snap Shackles with Clevis Pin
Wichard
$93.50 - $224.40
(No reviews yet)
Write a Review
Wichard
Wichard Snap Shackles with Clevis Pin
Wichard HR snap shackle with clevis pin
- HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Specifications
Part no. 2293: HR snap shackle with clevis pin - Length: 52 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 52
- Working load (kg): 960
- Breaking load (kg): 2000
- Weight (g): 54
- A (mm): 16
- B (mm): 8
- C (mm): 13
- D diameter (mm): 6
- E (mm): 8.1
Part no. 2295: HR snap shackle with clevis pin - Length: 70 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 70
- Working load (kg): 1280
- Breaking load (kg): 3850
- Weight (g): 130
- A (mm): 21
- B (mm): 11.5
- C (mm): 16
- D diameter (mm): 8
- E (mm): 11.5
Part no. 2297: HR snap shackle with clevis pin - Length: 86 mm
- Materials: HR 17.4 PH stainless steel grade
- Length (mm): 86
- Working load (kg): 2800
- Breaking load (kg): 7000
- Weight (g): 257
- A (mm): 26
- B (mm): 14
- C (mm): 21
- D diameter (mm): 10
- E (mm): 14
