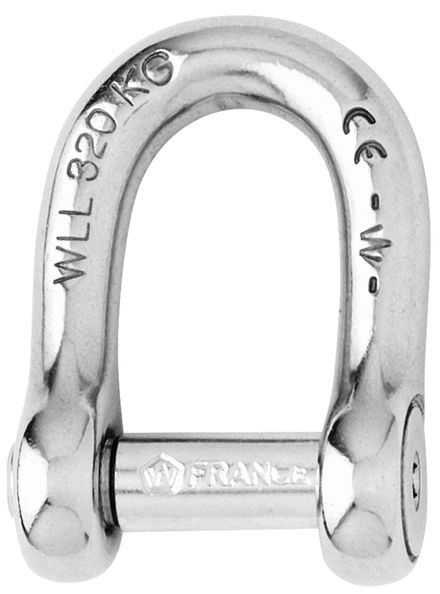

Wichard Self-locking D Shackle w/ Allen Head Pin (1303-1363)

Wichard Self-locking D Shackle w/ Allen Head Pin (packs)

Wichard
SKU:
1303-1363
|
UPC:
3587790013030
$47.90 - $74.46
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Wichard self-locking allen head pin D shackles

  • Self-locking shackle with allen head pin D forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e.)
  • CE marking and batch number

Applications

  • Ideal to link chain and anchor
  • On the halyard, avoids to damage the sails
  • To be used when the clutter is reduced

Materials

  • 316 stainless steel grade

Specifications

Part # Weight Working Load Breaking Strength Inside Length Inside Width Pin Diameter
kg lbs kg lbs kg in mm in mm in mm
1303 0.022 1323 600 3527 1600 0.75 19 0.47 12 0.24 6
1304 0.053 2116 960 5952 2700 1.02 26 0.63 16 0.31 8
1305 0.099 3175 1440 9480 4300 1.30 33 0.79 20 0.39 10
1306 0.187 4586 2080 12125 5500 1.54 39 0.94 24 0.47 12
1363 0.044 705 320 3307 1500 1.65 42 1.00 25.5 0.24 6
