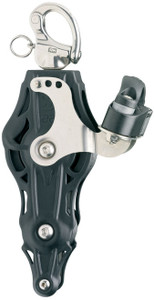

Wichard Ball Bearing Block Fiddle w/ Swivel Snap Shackle, Becket & Cam (73438, 74438, 75438)

Wichard Ball Bearing Block Fiddle w/ Swivel Snap Shackle, Becket & Cam

Wichard
SKU:
73438-75438
|
UPC:
3587790734386
$222.70 - $343.40
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

WICHARD FIDDLE BALL BEARING BLOCKS - SWIVEL SNAP SHACKLE BECKET & CAM

  • Complete range of ball bearing blocks
  • Modern design
  • Innovative design with two lateral races of ball bearings
  • Smooth running for low load and high speed action
  • Under high load the hub runs on stainless steel bush which allows the sheave to run freely
  • Light cheeks protecting the sheave
  • Wide choice of fastenings thanks to the universal head

APPLICATIONS

  • Mainsheet systems
  • Boom vang

MATERIALS

  • Grade 316L stainless steel head configuration
  • Grade 316L stainless steel load straps
  • POM cheeks
  • Delrin® ball bearings
  • Composite saddle for cam models
  • Composite sheave
  • Terminal (shackle i.e.): 316L stainless steel grade

SPECIFICATIONS

Part no. 73438: Fiddle ball bearing block - 45 - Swivel snap shackle becket & cam

  • Rope size: 10
  • Length (mm): 163
  • Width (mm): 86
  • Thickness (mm): 61
  • Sheave diameter (mm): 45
  • Working load (kg): 360
  • Breaking load (kg): 1000
  • Weight (g): 273

Part no. 74438: Fiddle ball bearing block - 55 - Swivel snap shackle becket & cam

  • Rope size: 12
  • Length (mm): 193
  • Width (mm): 95
  • Thickness (mm): 61
  • Sheave diameter (mm): 55
  • Working load (kg): 480
  • Breaking load (kg): 1500
  • Weight (g): 380

Part no. 75438: Fiddle ball bearing block - 70 - Swivel snap shackle becket & cam

  • Rope size: 14
  • Length (mm): 245
  • Width (mm): 120
  • Thickness (mm): 80
  • Sheave diameter (mm): 70
  • Working load (kg): 480
  • Breaking load (kg): 2700
  • Weight (g): 790
