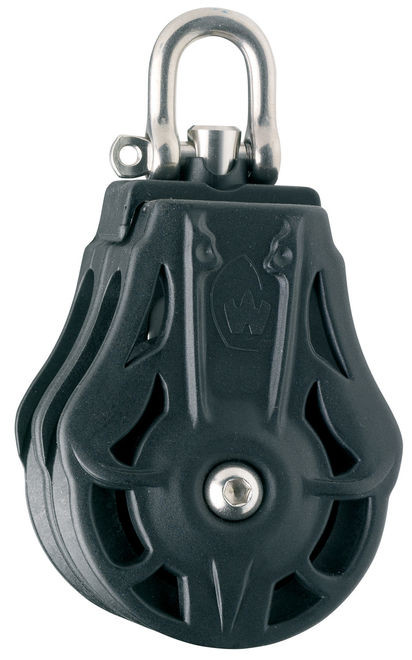

Wichard Plain Bearing Block Double w/ Swivel Head
Wichard
$62.43 - $189.55
(No reviews yet)
Write a Review
Wichard
Wichard Plain Bearing Block Double w/ Swivel Head
WICHARD DOUBLE PLAIN BEARING BLOCKS - SWIVEL HEAD
- Complete range of plain bearing blocks
- Modern design
- Withstand high loads
- Ideal for static operations
- The sheave runs on the stainless steel bush
- Light cheeks protecting the sheave
- Wide choice of fastenings thanks to the universal head
APPLICATIONS
- Part no. 62205
- Mainsheet systems
- Halyard applications
- Boom vangs
- Spinnaker control lines on dinghies, catamaran and small keelboats
- Part no. 63205
- Mainsheet systems
- Halyard applications
- boom vangs
- Downhaul
- Mast head block
MATERIALS
- Grade 316L stainless steel head configuration
- Grade 316L stainless steel load straps
- POM cheeks
- Composite saddle for cam models
- Composite sheave
- Terminal (shackle i.e.): 316L stainless steel grade
SPECIFICATIONS
Part no. 62205: Double plain bearing block - Sheave 35 - Swivel head
- Rope size: 8
- Length (mm): 84
- Width (mm): 37
- Thickness (mm): 40
- Sheave diameter (mm): 35
- Shackle diameter (mm): 5
- Working load (kg): 480
- Breaking load (kg): 900
- Weight (g): 119
Part no. 63205: Double plain bearing block - Sheave 45 - Swivel head
- Rope size: 10
- Length (mm): 97
- Width (mm): 49
- Thickness (mm): 46
- Sheave diameter (mm): 45
- Shackle diameter (mm): 5
- Working load (kg): 480
- Breaking load (kg): 1000
- Weight (g): 184
Part no. 64205: Double plain bearing block - Sheave 55 - Swivel head
- Rope size: 12
- Length (mm): 119
- Width (mm): 63
- Thickness (mm): 52
- Sheave diameter (mm): 55
- Shackle diameter (mm): 6
- Working load (kg): 800
- Breaking load (kg): 1500
- Weight (g): 315
Part no. 65205: Double plain bearing block - Sheave 70 - Swivel head
- Rope size: 14
- Length (mm): 153
- Width (mm): 80
- Thickness (mm): 68
- Sheave diameter (mm): 70
- Shackle diameter (mm): 8
- Working load (kg): 1440
- Breaking load (kg): 2700
- Weight (g): 653
