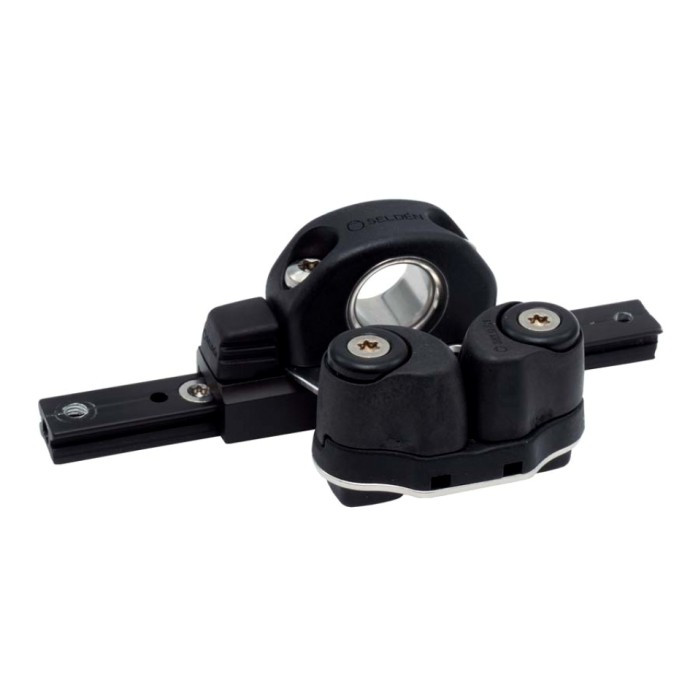

Selden System 15 Jib Cars w/ Pin Stop - Starboard (441-103-01)

Selden System 15 Jib Cars w/ Pin Stop - Starboard/Port

Selden
SKU:
S441-103-01/ S441-103-02
$218.86
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

System 15 is based on a 15 mm track and used for dinghies and small keelboats up to approximately 22 feet.

Technical Features System 15

  • The cars are black anodised, extruded aluminium. They run on Torlon ball bearings.
  • AISI 316 stainless shackles suit BBB 30 and BBB 40 blocks.
  • Jib car 441-103-01 feature captive slide rod bearings and it can easily be rebuilt for star board/port installations. A tight tolerance on the track reduces vertical movement for easier uncleating. 50° adjustment of the cam-cleat arm and 19 mm adjustment intervals sideways. The pinstop head is ergonomically designed for easy adjustment – even with cold hands.

Part# 441-103-01 - PIN STOP CAR SYSTEM 15, EYE/CAM, STARBOARD

  • Weight: 133.00 g
  • System: 15
  • SWL: 120 kg
  • Breaking load: 240 kg
  • Length: 68 mm
  • Width: 78 mm
  • Comment: Cam cleat 38

Part# 441-103-02 - PIN STOP CAR SYSTEM 15, EYE/CAM, PORT

  • Weight: 133.00 g
  • System: 15
  • SWL: 120 kg
  • Breaking load: 240 kg
  • Length: 68 mm
  • Width: 78 mm
  • Comment: Cam cleat 38
