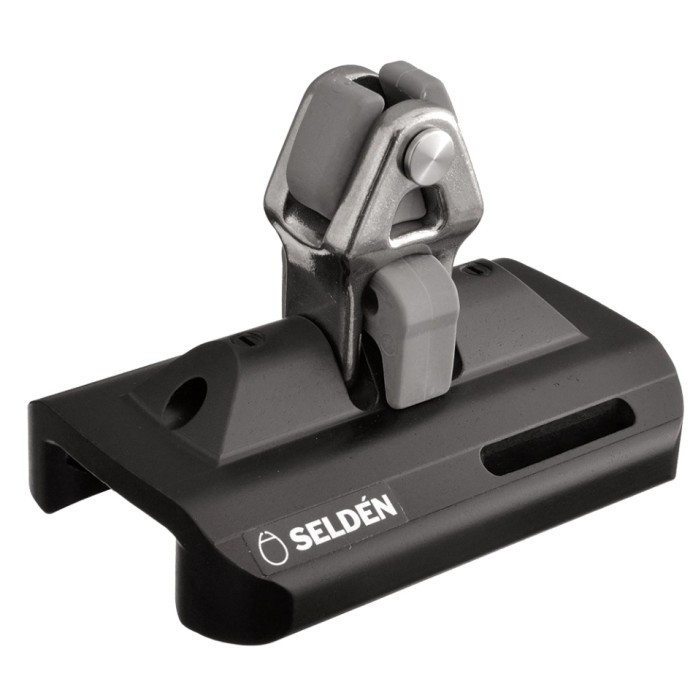

Selden System 30 Self Tacking Jib Car (443-179-01)

Selden System 30 Self Tacking Jib Cars

Selden
SKU:
S443-179-01/02
$382.05 - $729.12
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

System 30 Self Tacking Parts Features

  • The self tacking cars are black anodised, extruded aluminium. They run on Torlon ball bearings.
  • End fittings are glass fibre reinforced composite with rubber buffer bearings.
  • AISI 316 mirror finished stainless toggles suit Seldén PBB50 blocks and the MRB 60 block.
  • The toggle is supported by a rubber stand-up collar.

Specifications

443-179-01: SELF TACKING JIB CAR, SYSTEM 30

  • Weight: 767.00 g
  • System: 30
  • Safe working Load: 1100 kg
  • Breaking Load: 2200 kg
  • Length: 117
  • Width: 75
  • System match: PBB60, PBB70 & RBB60
  • Min Rv: 3000
  • Min Rh: 3000
  • Comment: Ball bearing, Not to be used with curved HB-30 track

443-179-02: DOUBLE SELF TACKING JIB CAR ,SYSTEM 30

  • Weight: 1681.00 g
  • System: 30
  • Safe working Load: 2000 kg
  • Breaking Load: 4000 kg
  • Length: 230
  • Width: 75
  • System match: PBB80, RBB80
  • Min Rv: 3000
  • Min Rh: 3000
  • Comment: Ball bearing. Not to be used with curved HB-30 track, Use end stop 443-166-01

Please note these products may have to be special ordered from Europe and additional fees may apply. A member from our sales staff will be in contact with you if this applies to your order. Thank you for understanding.
