Selden Snap Shackle Adapter

Selden Snap Shackle Adapters

Selden
SKU:
S404-040-01R to S410-040-01R
$65.57 - $242.79
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

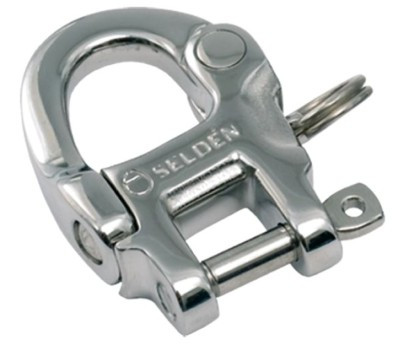

Selden Snap Shackle Adapters

A brilliant solution for any application you want to attach and remove quickly, for example runners and check stays. Just replace the standard shackle with a snap shackle. The shackle is made of high strength Duplex 2205 stainless steel and has a quality mirror finish.

Specifications

404-040-01R: Snap Shackle Adapter 40

  • Weight: 24.00 g

  • Model: Snap Shackle
  • Sub Type: Snap Shackle
  • SWL: 550 kg
  • BRL: 1100 kg
  • Ø Pin: 4 mm
  • W : 8 mm
  • L : 3 mm
  • Width: 25 mm
  • Height: 37 mm
  • Ø A: 10 mm

405-040-01R: Snap Shackle Adapter 50

  • Weight: 65.00 g

  • Model: Snap Shackle
  • SubType: Snap Shackle
  • SWL: 900 kg
  • BRL: 1800 kg
  • Ø Pin: 5 mm
  • W : 12 mm
  • L : 6 mm
  • Width: 34 mm
  • Height: 52 mm
  • Ø A: 14 mm

406-040-01R: Snap Shackle Adapter 60

  • Weight: 106.00 g

  • Model: Snap Shackle
  • Sub Type: Snap Shackle
  • SWL: 1500 kg
  • BRL: 3000 kg
  • Ø Pin: 6 mm
  • W : 13 mm
  • L : 6 mm
  • Width: 41 mm
  • Height: 61 mm
  • Ø A: 16 mm

408-040-01R: Snap Shackle Adpater 80

  • Weight: 257.00 g

  • Model: Snap Shackle
  • Sub Type: Snap Shackle
  • SWL: 2500 kg
  • BRL: 5000 kg
  • Ø Pin: 10 mm
  • W : 18 mm
  • L : 7 mm
  • Width: 54 mm
  • Height: 81 mm
  • Ø A: 22 mm

410-040-01R: Snap Shackle Adapter 100

  • Weight: 492.00 g

  • Model: Snap Shackle
  • Sub Type: Snap Shackle
  • SWL: 4000 kg
  • BRL: 8000 kg
  • Ø Pin: 12 mm
  • W : 22 mm
  • L : 9 mm
  • Width: 66 mm
  • Height: 100 mm
  • Ø A: 26 mm
