Selden Forged Shackles
Selden
$30.71 - $143.28
(No reviews yet)
Write a Review
Selden
Selden Forged Shackles
Selden Forged Shackles
- Stainless AISI 316, Duplex (307-004R)
- Max working load/breaking load are valid when the shackle is fitted to appropriate Seldén block
Specifications

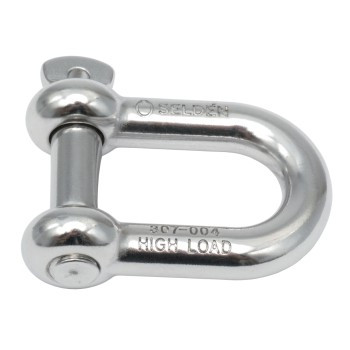

307-004R: Shackle Ø12x24x41 (Hi-Load) ST
-
Weight: 196.00 g
- Model: D-shackle
- SubType: D-shackle
- SWL: 4000 kg
- BRL: 8000 kg
- ØPin: 12 mm
- W : 24 mm
- L : 41 mm
- Width: 24 mm
- Height: 41 mm
307-080R: Shackle Ø4x8x15 ST
-
Weight: 7.00 g
- Model: D-shackle
- Sub Type: D-shackle
- SWL: 250 kg
- BRL: 500 kg
- Ø Pin: 4 mm
- W : 8 mm
- L : 15 mm
- Width: 8 mm
- Height: 15 mm
307-081R: Shackle Ø5x11x19 ST
-
Weight: 15.00 g
- Model: D-shackle
- Sub Type: D-shackle
- SWL: 650 kg
- BRL: 1300 kg
- Ø Pin: 5 mm
- W : 11 mm
- L : 19 mm
- Width: 11 mm
- Height: 19 mm
307-085R: Shackle Ø10/8x21x40 ST
-
Weight: 76.00 g
- Model: D-shackle
- Sub Type: D-shackle
- SWL: 2000 kg
- BRL: 4000 kg
- Ø Pin: 10 mm
- W : 17 mm
- L : 31 mm
- Width: 21 mm
- Height: 40 mm
307-086R: Shackle Ø6 ST
- Weight: 26.00 g
- Width: - mm
- Height: - mm
- Pin Dia: 6 mm
- Safe working load: 1100 kg
- Breaking load: 2200 kg
- Combine with: PBB 60,,BBB 60**, MRB 60**
*Only used on BBB 40 triple. **Only used on BBB 60/MRB 60 double/triple.
307-097R: Shackle Ø8/6x13x21 ST
-
Weight: 37.00 g
- Model: D-shackle
- Sub Type: D-shackle
- SWL: 1500 kg
- BRL: 3000 kg
- Ø Pin: 8 mm
- W : 13 mm
- L : 21 mm
