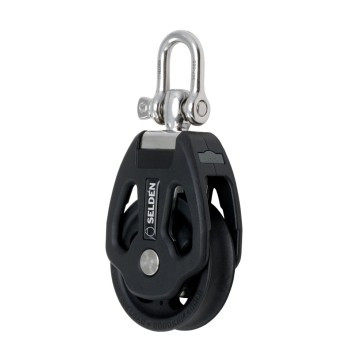

Selden Plain Bearing Blocks 80mm Single (408-001-02R)

Selden Plain Bearing Blocks 80mm Single

Selden
SKU:
S408-001-01R to S408-001-02R
$202.58 - $217.84
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Plain bearing blocks are typically used for heavy and static loads in:

  • Halyard tuning
  • Mainsheet systems
  • Boom vang

TECHNICAL FEATURES

  • Glass fibre reinforced sheave with polymer bushing.
  • Bronze top swivel bushings.
  • Optimised 8/10 shackle with Ø8 body for good compatibility and Ø10 pin for high bending resistance.
  • Stainless steel strap for best strength and longer service life.
  • Stiff glass fibre reinforced cheeks to prevent lines from wedging.
  • Glass fibre reinforced composite.
  • Sliding swivel locking mechanism.

SPECIFICATIONS

Part# 408-001-01R - PBB80 SINGLE

  • Weight: 462.00 g
  • Safe working Load: 2000 kg
  • Breaking Load: 4000 kg
  • Max line size: 16 mm
  • Pin diam: 10 mm
  • Shackle diam: 8 mm
  • System: PBB80
  • Block type: single

Part# 408-001-02R - PBB80 SINGLE/BECKET

  • Weight: 525.00 g
  • Safe working Load: 2000 kg
  • Breaking Load: 4000 kg
  • Max line size: 16 mm
  • Pin diam: 10 mm
  • Shackle diam: 8 mm
  • System: PBB80
  • Block type: single, becket
