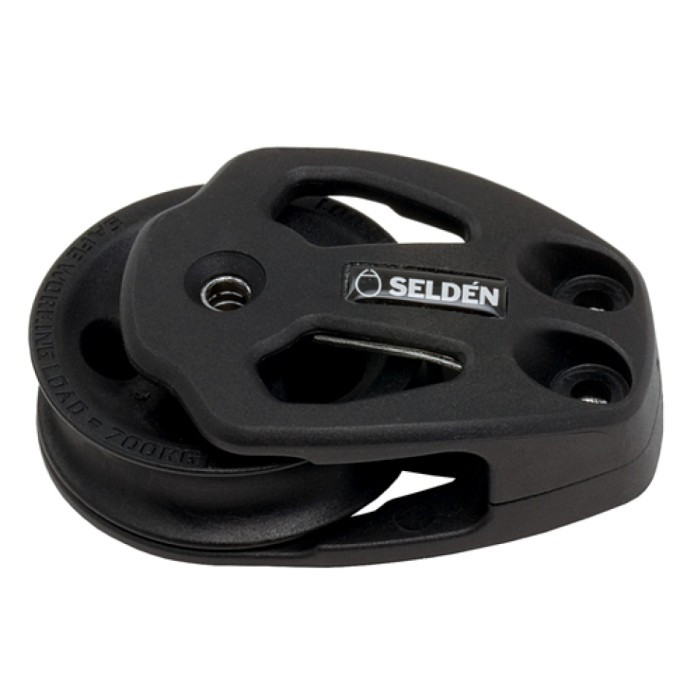

Selden Plain Bearing Blocks 80mm Cheek (408-001-15R)

Selden Plain Bearing Blocks 80mm Cheek

Selden
SKU:
S408-001-15R to S408-001-20R
$221.16 - $384.27
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Plain bearing blocks are typically used for heavy and static loads in:

  • Halyard tuning
  • Mainsheet systems
  • Boom vang

TECHNICAL FEATURES

  • Glass fibre reinforced sheave with polymer bushing.
  • Bronze top swivel bushings.
  • Optimised 8/10 shackle with Ø8 body for good compatibility and Ø10 pin for high bending resistance.
  • Stainless steel strap for best strength and longer service life.
  • Stiff glass fibre reinforced cheeks to prevent lines from wedging.
  • Glass fibre reinforced composite.
  • Sliding swivel locking mechanism.

SPECIFICATIONS

Part# 408-001-15R - PPB80 CHEEK

  • Weight: 333.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • System: PBB80
  • Max line size: 16 mm
  • Upper breaking load: kN
  • Upper safe working load: kN
  • Mounting: 3xM8

Part# 408-001-20R - PBB80 CHEEK DOUBLE

  • Weight: 632.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • System: PBB80
  • Max line size: 16 mm
  • Upper breaking load: 20.00 kN
  • Upper safe working load: 10.00 kN
  • Mounting: 3xM8
