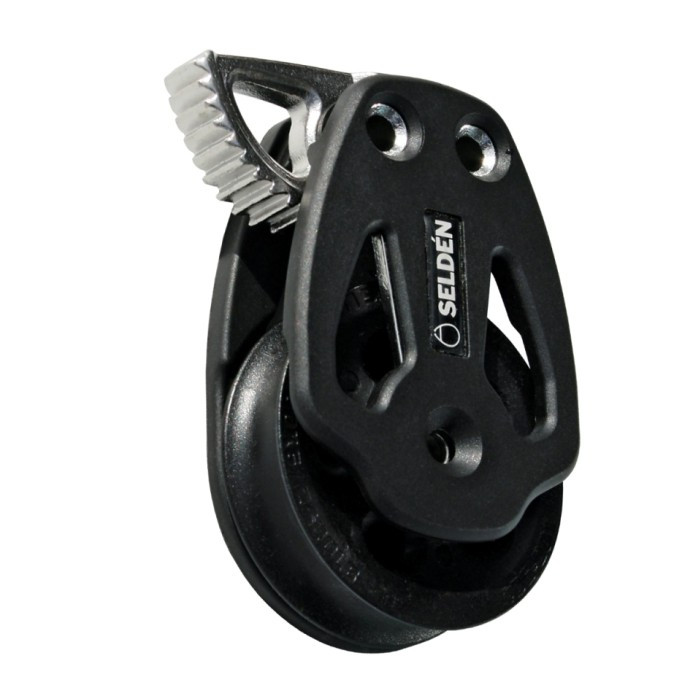

Selden Plain Bearing Blocks 80mm Cheek Quick Lock Anti-Clockwise (408-001-18R)

Selden Plain Bearing Blocks 80mm Cheek Quick Lock

Selden
SKU:
S408-001-18R to S408-001-22R
$264.94 - $496.25
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Plain bearing blocks are typically used for heavy and static loads in:

  • Halyard tuning
  • Mainsheet systems
  • Boom vang

TECHNICAL FEATURES

  • Spring loaded arm for precise and reliable locking operation. The spring holds the arm in open or closed positions.
  • The Quick Lock function is intended for temporary use only, and does not replace a normal clutch or a cleat.
  • Acetal sheave (PBB 60).
  • Torsionally rigid cheeks in glass fibre filled composite prevent jamming of the line.
  • Radial loads are absorbed by a stainless strap inside the cheeks. A safety feature quite typical for Seldén products.

SPECIFICATIONS

Part# 408-001-18R - PBB80 CHEEK, QUICK LOCK/ANTI-CLOCKWISE

  • Weight: 389.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • System: PBB80
  • Max line size: 16 mm
  • Mounting: 3xM8

Part# 408-001-19R - PBB80 DOUBLE CHEEK, QUICK LOCK/ANTI-CLOCKWISE

  • Weight: 781.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • System: PBB80
  • Max line size: 16 mm
  • Upper breaking load: 10.00 kN
  • Upper safe working load: 20.00 kN
  • Mounting: 3xM8

Part# 408-001-21R - PBB80 CHEEK, QUICK LOCK/CLOCKWISE

  • Weight: 389.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • Max line size: 16 mm
  • Mounting: 3xM8

Part# 408-001-22R - PBB80 DOUBLE CHEEK, QUICK LOCK/CLOCKWISE

  • Weight: 781.00 g
  • Breaking Load: 4000 kg
  • Safe working Load: 2000 kg
  • Max line size: 16 mm
  • Upper breaking load: 20.00 kN
  • Upper safe working load: 10.00 kN
  • Mounting: 3xM8
