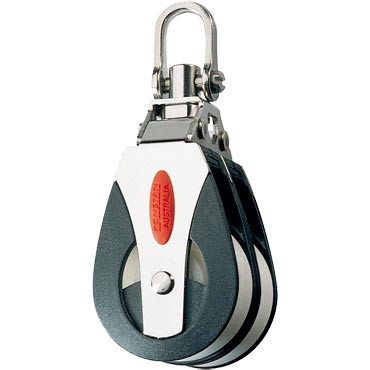

RF41200: SERIES 40 ALL PURPOSE BLOCK, DOUBLE
Double, swivel shackle head (non-locking)
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
SPECIFICATIONS
- B.L. (kg) 1200
- M.W.L. (kg) 600
- Max. Rope diameter (mm) 10
- Weight (g) 135
- Pin Ø (mm) 5
PRODUCT INFORMATION
- All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads.
- For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
MATERIALS
- U.V. stabilised Acetal sheaves
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
- Sheaves: UV stabilised acetal
- Cheeks: Impact modified, fibre reinforced and UV stabilised nylon
