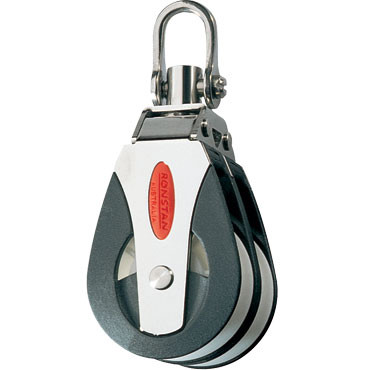

RF51200: Series 50 All Purpose Block, Double
Double, universal head
FEATURES
-
Exceptionally high working loads.
- Low maintenance, long service life.
- Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
- Slotted pin shackle eliminates fouled lines
SPECIFICATIONS
- Sheave Ø (mm) 50
- B.L. (kg) 2000
- M.W.L. (kg) 1000
- Max. Rope Ø (mm) 12
- Weight (g) 255
- Pin Ø (mm) 6
- Suits Block Series series 125 roller ball bearing
- A (mm) 125.0
- B (mm) 20.5
- C (mm) 30.0
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
PRODUCT INFORMATION
- All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
- Swivel shackle head for full 360 degree rotation (non-locking).
