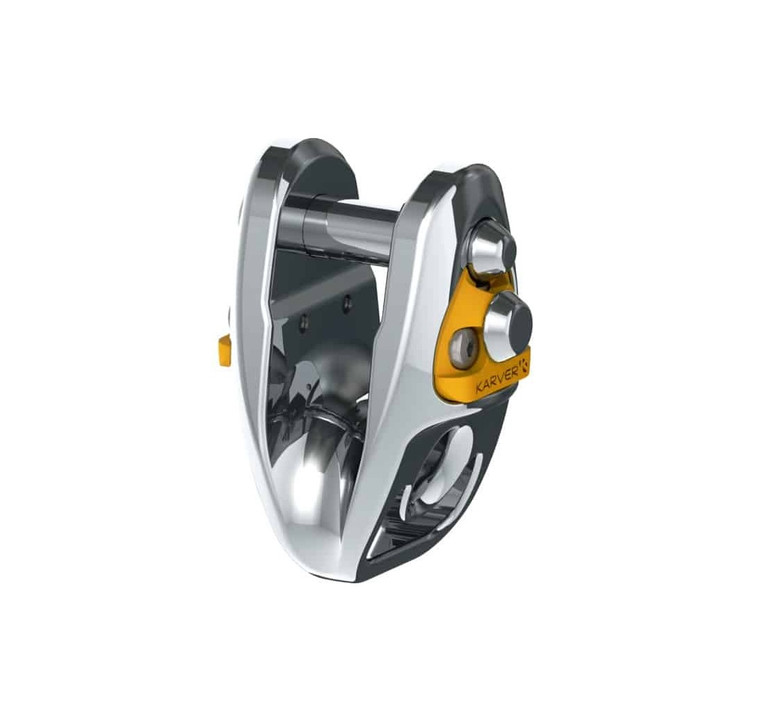

Karver 3:1 Friction Sheave KF3.0

Karver 3:1 Friction Sheave KF3.0
Part no. PF314300

3:1 friction sheave for KF3.0 furler. This accessory allows you to easily and remotely install your sail and furler on a bowsprit. For hooked sails, the 3: 1 allows a hoist to take up the luff tension.

Specifications

• Ref PF314300
• Weight 0.14 kg
• Boat size 30 to 50 ft
• Workload 3,00 T
• Breaking load 6,00 T
• Pin diameter (mm) 8
• Fork width (mm) 16,4
• Cutting length from pin (mm) 44
• Long x Width x Thickness (mm) 12
• 54,4 x 40 x 31,8

Strengths

• The 3: 1 is delivered as standard on the Racing KFR version
• Available as an option on the other versions
• Practical and fast thanks to its quick captive axle
• Allows a secure installation of the furler at the end of a bowsprit
• Allows to easily take up the luff tension
• Indispensable for hooked sails
• Installation under the drum or the swivel
• Can also be used as a 2:1 hoist
• More compact (and less expensive) than a hauling block
• Part in cast stainless steel. Excellent value for money

Karver Tips

• There are 3 3:1 friction sheave references for each model:
• PF317 150: to replace a KSnap with a 3:1. To install directly during the preparation of the order, we then deduct the price of the KSnap.
• PF314 150: to order a 3:1 only
• For the most demanding racers we always offer the 3: 1 large in a half moon shape. It is more compact, more stable and more resistant. It can be made in titanium on request.
• If the 3:1 is used in 2:1, be sure to secure it with a small rope. Once detached from the furler, nothing prevents it from falling into the water.
• The KSnap which is fitted as standard on the Standard and Classic versions is a 2-in-1 snap shackle with a 2:1 function. In many cases, this configuration will be enough.
• The precursor is Karver: the first to design and market this type of sheave, which has since been widely used by competitors.
