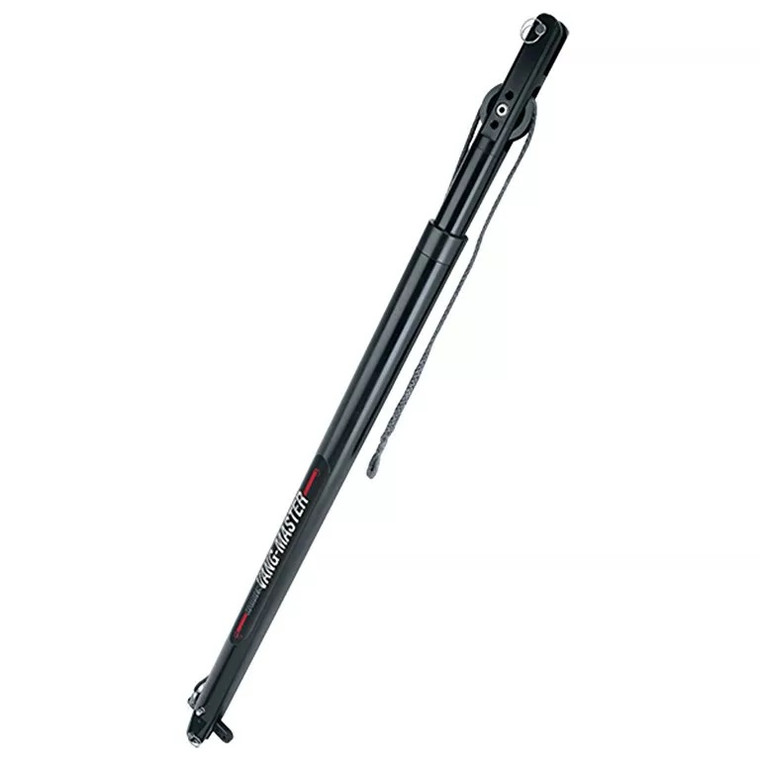

Harken Vang-Master 4 (VM44656)

Harken Vang-Master 4

Harken
SKU:
VM44656
|
UPC:
097653292500
$7,657.71
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Delivery lead time may take 3-4 weeks.

Standard Vang-Master rigid vangs are available for boats with vang fittings on the boom and mastbase. Typical boat lengths: 7.6 – 11 m (25'- 36').

Specifications

  • Weight (kg) 2.49 kg
  • Weight (lb) 5.5 lb
  • Pin center length (closed) (mm) 1168 mm
  • Pin center length (closed) (in) 46 in
  • Pin center length open (mm) 1422 mm
  • Pin center length open (in) 56 in
  • Stroke (mm) 254 mm
  • Stroke (in) 10 in
  • Pin Ø (mm) 12.7 mm
  • Pin Ø (in) 1/2 in
  • Jaw width (mm) 12 mm
  • Jaw width (in) 1/2 in
  • Maximum return pressure (kg) 227 kg
  • Maximum return pressure (lb) 500 lb
  • Boat length (m) 7.6 - 11 m
  • Boat length (ft) 25 - 36 ft


Resources/References:

Need help to design your Harken system - take a look here for the Harken System Diagrams

And here for Harken Manuals & Support Information
