Harken Vang-Master 1 (VM13240)

Harken Vang-Master 1

Harken
SKU:
VM13240
|
UPC:
097653292470
$5,562.15
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Delivery lead time may take 3-4 weeks.

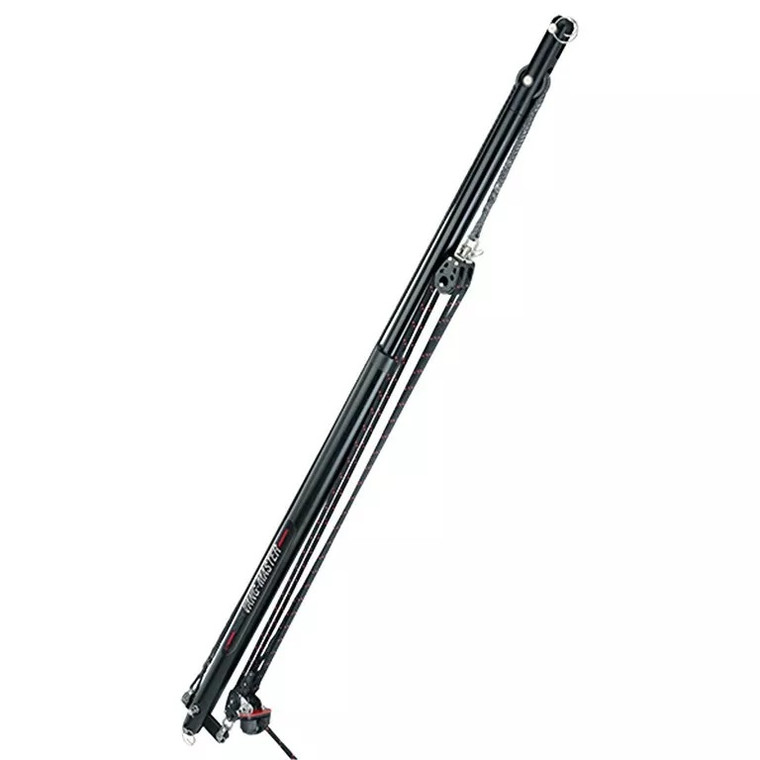

Standard Vang-Master rigid vangs are available for boats with vang fittings on the boom and mastbase. Typical boat lengths: 5.5 – 7.9 m (18'-26').

  • Weight (kg) 1.25 kg
  • Weight (lb) 2.75 lb
  • Pin center length (closed) (mm) 813 mm
  • Pin center length (closed) (in) 32 in
  • Pin center length open (mm) 1016 mm
  • Pin center length open (in) 40 in
  • Stroke (mm) 203 mm
  • Stroke (in) 8 in
  • Pin Ø (mm) 10 mm
  • Pin Ø (in) 3/8 in
  • Jaw width (mm) 6 mm
  • Jaw width (in) 1/4 in
  • Maximum return pressure (kg) 159 kg
  • Maximum return pressure (lb) 350 lb
  • Boat length (m) 5.5 - 7.9 m
  • Boat length (ft) 18 - 26 ft
